3. Administration Guide

This Admin Guide describes how to set up and use WANdisco's WD Fusion.

3.1 Housekeeping

This section covers basic operations for

Starting up

To start WD Fusion UI:

Open a terminal window on the server and log in with suitable file permissions.

Run the fusion-ui-server service from the /etc/init.d folder:

rwxrwxrwx  1 root root    47 Apr 10 16:05 fusion-ui-server -> /opt/wandisco/fusion-ui-server/bin/fusion-ui-server

Run the script with the start command:

[root@localhost init.d]#  ./fusion-ui-server start

Starting fusion-ui-server:.                         [  OK  ]

WD Fusion starts. Read more about the fusion-ui-server init.d script.

Also you can invoke the service directly. e.g.
```
service fusion-ui-server stop/start
```

Shutting down

To shut down:

Open a terminal window on the server and log in with suitable file permissions.

Run the WD Fusion UI service, located in the init.d folder:

rwxrwxrwx  1 root root    47 Dec 10 16:05 fusion-ui-server -> /opt/wandisco/fusion-ui-server/bin/fusion-ui-server

Run the stop script:

[root@redhat6 init.d]#  ./fusion-ui-server stop
stopping fusion-ui-server:                                   [  OK  ]
[root@redhat6 init.d]#

The process shuts down.

Shutdowns take some time

The shutdown script attempts to stop proceses in order before completing, as a result you may find that (from WD Fusion 2.1.3) shutdowns may take up to a minute to complete.

init.d management script

The start-up script for persistent running of WD Fusion is in the /etc/init.d folder. Run the script with the help command to list the available commands:

[root@redhat6 init.d]# ./fusion-ui-server help
  usage: ./fusion-ui-server (start|stop|restart|force-reload|status|uistart|uistop|repstart|repstop|version)

start         Start Fusion UI Server services
stop          Stop Fusion UI Server services
restart       Restart Fusion UI Server services
force-reload  Restart Fusion UI Server services
status        Show the status of Fusion UI Server services
uistart       Start the Fusion UI Server User Interface
uistop        Stop the Fusion UI Server User Interface
repstart      Start the Fusion UI Server Replicator
repstop       Stop the Fusion UI Server Replicator
version       Show the version of Fusion UI Server

Check the running status (with current process ID):

[root@redhat6 init.d]# ./fusion-ui-server status
Checking delegate:not running                              [  OK  ]
Checking ui:running with PID 17579                         [  OK  ]

Check the version:

[root@redhat6 init.d]# ./fusion-ui-server  version
1.0.0-83

Managing Services through the WD Fusion UI

Providing that the UI service is running, you can stop and start WD Fusion through the Fusion servers tab.

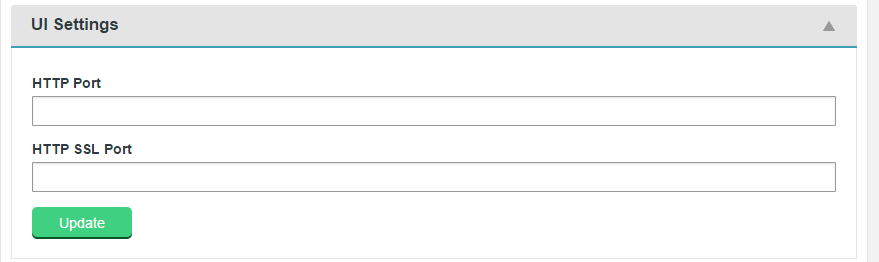

The UI for managing WD Fusion can be accessed through a browser, providing your have network access and the port that the UI is listening on is not blocked.

http://<url-for-the-server>:<UI port>

e.g.

http://wdfusion-static-0.dev.organisation.com:8083/ui/

You should not need to add the /ui/ at the end, you should be redirected there automatically.

Login credentials

Currently you need to use the same username and password that is required for your platform manager, e.g. Cloudera Manager or Ambari. In a future release we will separate WD Fusion UI from the manager and use a new set of credentials.

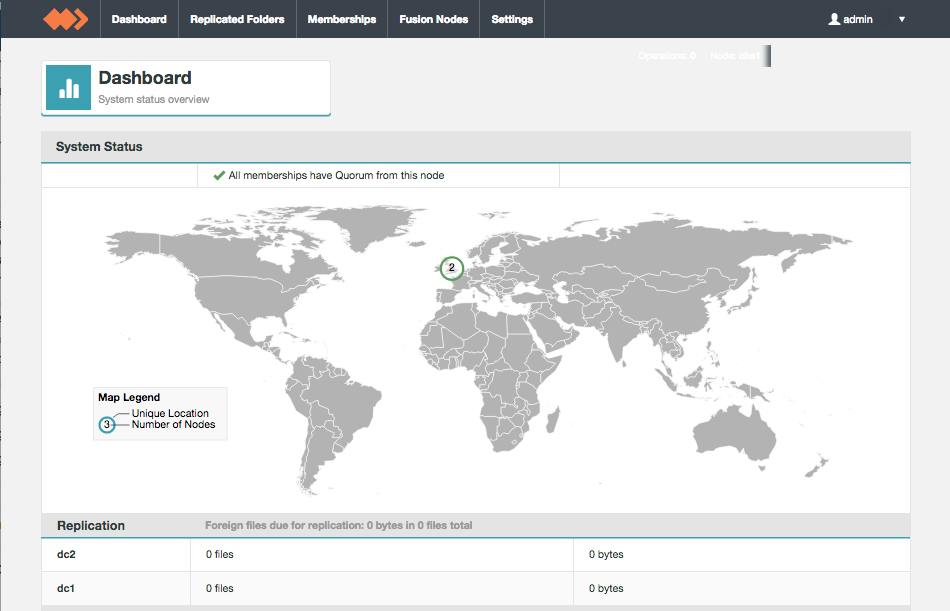

Checking cluster status on the dashboard

The WD Fusion UI dashboard provides a view of WD Fusion's status. From the world map you can identify which data centers are experiencing problems, track replication between data centers or monitor the usage of system resources.

For more details on what each section of the Dashboard, see the Reference section for the Dashboard.

UI Dashboard will indicate if there are problems with WD Fusion on your cluster.

Server Logs Settings

The WD Fusion logs that we display in the WD Fusion UI are configured by properties in the ui.properties file. This is read by the Non-stop NameNode UI server on start up so you will need to restart the server for changes to take affect. The ui.properties file is not replicated between nodes so you must currently set it manually on each node.

3.2 Troubleshooting

We list any current known issues here, along with advise on fix or work around them:

Handling ThreadLocalRandom errors

When running hdfs commands it is possible that you may see the following error message:

WARN internal.ThreadLocalRandom: Failed to generate a seed from SecureRandom within 3 seconds. Not enough entrophy?

This error is caused by a deficiency in netty and will correspond in a drop in performance and is worth addressing using the following procedure. This example applies to Centos servers, you may need to adjust the procedure for other operating systems:

Open a terminal session as root. Run
```
yum install rng-tools
```
Edit the rngd file, e.g.
```
vi /etc/sysconfig/rngd
```
add the line
```
EXTRAOPTIONS="-r /dev/urandom"
```
Run
```
service rngd start
```
to start up the random data daemon.
Run
```
chkconfig rngd on
```
to start the service on system boot.

Note that when Netty 4.0.28 is released this procedure should no longer be necessary.

Moving objects between mismatched filesystems

If you move objects onto the distributed file system you must make sure that the Fusion URI is used on both the originating and destination paths. Otherwise you'd see an error like this:

[admin@vmhost01-vm1 ~]$ hadoop fs -mv /repl2/rankoutput1 fusion:///repl2/rankoutput2/
15/05/13 21:22:40 INFO client.FusionFs: Initialized FusionFs with URI: fusion:///, and Fs: hdfs://vmhost01-vm1.cluster.domain.com:8020. FileSystem: DFS[DFSClient[clientName=DFSClient_NONMAPREDUCE_-721726966_1, ugi=admin@DOMAIN.EXAMPLE (auth:KERBEROS)]]
mv: `/repl2/rankoutput1': Does not match target filesystem

If you use the fusion:// on both paths it will work, E.g.

[admin@vmhost01-vm1 ~]$ hadoop fs -mv fusion:///repl2/rankoutput1 fusion:///repl2/rankoutput1
15/05/13 21:23:27 INFO client.FusionFs: Initialized FusionFs with URI: fusion:///, and Fs: hdfs://vmhost01-vm1.cluster.domain.com:8020. FileSystem: DFS[DFSClient[clientName=DFSClient_NONMAPREDUCE_-1848371313_1, ugi=admin@DOMAIN.EXAMPLE (auth:KERBEROS)]]

Note, however, that since the non-replicated directory doesn't yet exist in ZONE2 it will get created without the files it contains on the originating zone. Moving non-replicated directory to replicated directory does not work without the use of the fusion:// URI.

Handling file inconsistencies

WD Fusion's replication technology ensures that changes to data are efficiently propagated to each zone. There are, however, a few cases where where the consistency of objects in the distributed file system lose consistency. WD Fusion can be set to schedule periodic consistency checks, or an administrator can trigger a check from the Admin UI or via the REST API.

In an inconsistency is found then the administrator needs to manually repair the issue using whatever system tools correspond with the Hadoop application. This may require that up-to-date files are manually copied over from one zone to overwrite the corrupted version of the files. In some cases files will need to be deleted/removed in order to restore consistency. You will need to follow the guidelines and documenation that corresponds with your underlying applications, e.g. MapR, Hive etc.

Consistency Checks look at filesize not content
The current implementation of the Consistency Check tool compares the size of files between zones. We're looking carefully at how we can implement a qualitative check that can specifically identify file corruption while not greatly impacting performance.

Talkback

Talkback is a bash script that is provided in your WD Fusion installation for gathering all the logs and replication system configuration that may be needed for troubleshooting problems. Should you need assistance from WANdisco's support team, they will ask for an output from Talkback to begin their investigation.

Locating Talkback

The Talkback script is located in the Toolbox set of scripts that is bundled with WANdisco's WD Fusion packages. You need to ensure that this has been installed on your server.

WD Fusion Non-Stop Toolbox

[root@redhat6 wandisco]# rpm -qpl wdd-namenode-nonstop-toolbox-<versions>+WANdisco.326-1.el6.x86_64.rpm
/usr/hdp/current/hadoop-client/hadoop/toolbox
/usr/hdp/current/hadoop-client/hadoop/toolbox/README
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/add-new-learner.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/change-membership.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/deploy-membership.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/do-emr.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/do-induction.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/encrypt-password.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/function_lib
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/namenode-password-encrypter-1.9.10.1-hdp2.2.jar
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/quorum-check.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/recover-agreements.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/recover-from-dirty-shutdown.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/remove-node.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/set-disk-monitor.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/show-current-membership.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/show-memberships.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/show-nodes.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/show-progress.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/start-output-proposal-sequence.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/stop-output-proposal-sequence.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/sysInfo.sh
/usr/hdp/current/hadoop-client/hadoop/toolbox/bin/talkback.sh

Running talkback

To run the talkback script, follow this procedure:

Log into the NameNode server, If you're not logged in as root, use sudo to run the talkback script, e.g.

   [root@redhat6 bin]# sudo ./talkback.sh
	#######################################################################
	# WANdisco talkback - Script for picking up system & replicator       #
	# information for support                                             #
	#######################################################################

	To run this script non-interactively please set following environment vars:

	ENV-VAR:
	WDFUSION_SUPPORT_TICKET          Set ticket number to give to WANdisco support team


	===================== INFO ========================
	The talkback agent will capture relevant configuration
	and log files to help WANdisco diagnose the problem
	you may be encountering.

	Retrieving current system state information

The output will run something like this:

    Retrieving current system information
	Copying WANdisco config files
	Please provide absolute path to the hdfs headless keytab for the hdfs user.
	Gathering information from DConE endpoints
	Protocol is: http
	Hostname is host-example.hostname.com
	Port is: 50070
	retriving details for node "node1.hostname.com"
	retriving details for node "node2.hostname.com"
	retriving details for node "node3.hostname.com"
	retriving details for node "node4.hostname.com"
	Managing type is: ambari
	Copying log files, this can take several monutes.
	/usr/hdp/2.2.x.x/hadoop-hdfs/lib
	Would you like to include hadoop fsck?
	This can take some time to complete and may drastically increase the size of the tarball.
	1) Yes
	2) No
	#? 1
	Running sysInfo script to ensure maximum hardware and software information...
	Rootdir is /usr/hdp/2.2.x.x/hadoop/hadoop/toolbox/bin
	Gathering Summary info....
	Gathering Kernal info....
	Gathering Hardware info....
	Gathering FIle-System info....
	Gathering Network info....
	Gathering Services info....
	Gathering Software info....
	Gathering Stats info.....
	Gathering Stats info.....
	THe FILE sysInfo/sysInfo_host-example.hostname.com-2015030242024-202620.tar.gz HAS BEEN CREATED By sysInfo

	TALKBACK COMPLETE
	---------------------------------------------------------------------------
	Please upload the file:
	sysInfo/sysInfo_host-example.hostname.com-2015030242024-202620.tar.gz

	to WANdisco support with a description of the issue.

	Note: do not email the talkback fies, only upload them via ftp or attache them via the web ticket user interface.
	---------------------------------------------------------------------------

Follow the instructions for uploading the output on WANdisco's support website.

4. Managing Replication

WD Fusion is built on WANdisco's patented DConE active-active replication technology. DConE sets a requirement that all replicating nodes that synchronize data with each other are joined in a "membership". Memberships are co-ordinated groups of nodes where each node takes on a particular role in the replication system.

For more information about DConE and its different roles see the reference section's chapter called A Paxos Primer

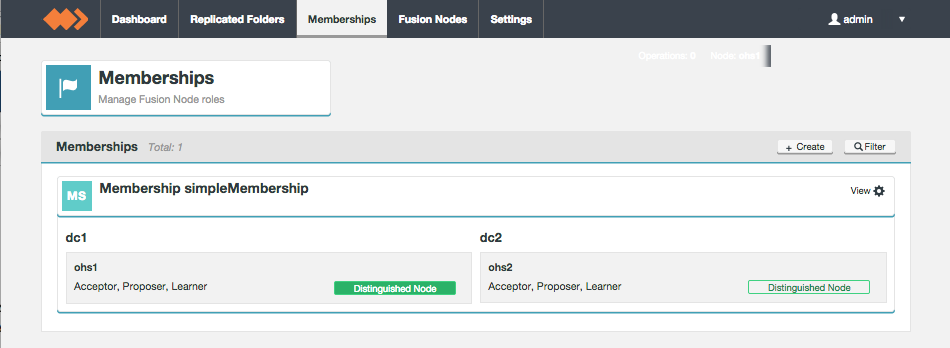

Membership example

4.1 Create a membership

Log in to the WD Fusion UI. Click on the Membership tab. Click on the + Create button. A "New Membership" window will open that will display the WD Fusion nodes organized by zone.

Create Membership1
Configure the membership by selecting which nodes should be acceptors.

Settings

Guide to nodes

APL
Acceptor - the node will vote on the order in which replicated changes will play out
Proposer - the node will create proposals for changes that can be applied to the other nodes
Learner - the node will receive replication traffic that will synchronize its data with other nodes.

4.2 Replicated Folders

WD Fusion allows selected folders within your hdfs file system to replicated to other data centers in your cluster. This section covers the set up and management of replicated folders.

Create a replicated folder

Before you can configure WD Fusion UI to replicate a hdfs folder, you need to set the folder up on your cluster. This procedure is covered in the initial set up of WD Fusion server, it's covered here in more detail, specifically for creating additional replicated directories after a successful deployment.
1. On each data center, create a directory in the hdfs file space. To avoid permission problems, ensure that the owning user/group are identical across your data centers. Use Hadoop's filesystem command to complete the tasks:
```
hadoop fs -mkdir /user/hiver
hadoop fs -chown -R hiver:groupname /user/hiver
```
2. As user hdfs, run the following commands on each data center:
```
hadoop fs -mkdir /usr/hive/warehouse-replicated
hadoop fs -chown hiver:hiver /warehouse-replicated
```
  This ensures that the a universal system user has read/write access to the hdfs directory warehouse-replicated that will be replicated through WD Fusion.
Set up the folder in WD Fusion UI
1. Once the folder is in place on all nodes, log in to WD Fusion UI on one of the WD Fusion nodes and click on the Replciated Folders tab.

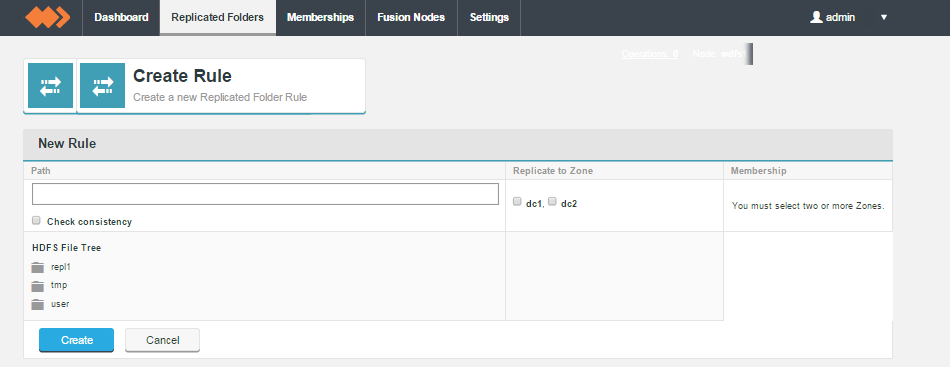

  Create Rule
2. Select the folder that you created in step 1. from the HDFS File Tree. Select check boxes of the Zones that you wish the folder to be replicated between. Select an available Membership from the Membership dropdown. The membership determines how replication is managed, there's more information about how membership works in the Reference section A Primer on Paxos.

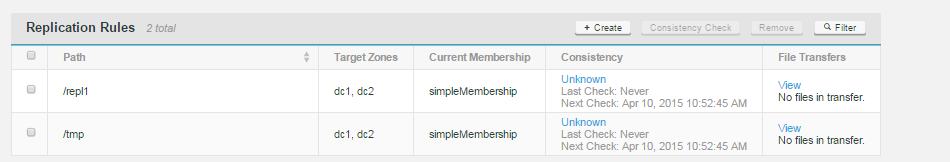

  Replicated folders
3. If you didn't complete a consistency check on the selected folder, you may do so now.

  Replicate to Zones

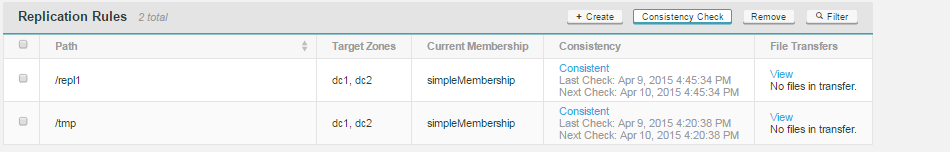

4. After the completion of a consistency check, the Consistency column will report the consistency status.

  Replicated folder status

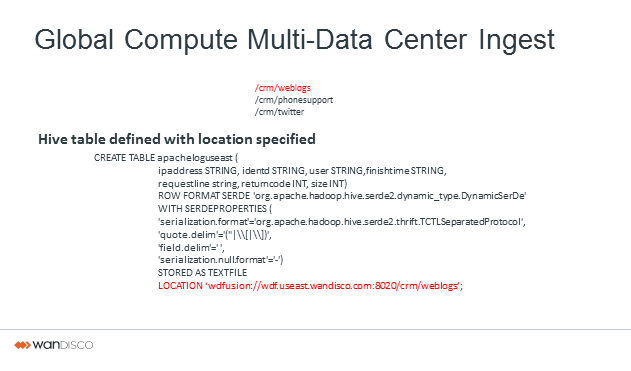

Configure Hadoop

Once WD Fusion has been installed and set up, you will need to modify your Hadoop applications so that when appropriate, they write to your replicated folder.

Configure Hadoop applications to write to the replicated file space.

Configure for High Availability Hadoop

If you are running Hadoop in a High Availability (HA) configuration then you should run through the following steps for WD Fusion:

Enable High Availability on your Hadoop clusters. See the documentation provided by your Hadoop vendor, i.e. - Cloudera (via QJM) or Hortonworks.
The HA wizard does not set the HDFS dependency on ZooKeeper
Workaround:
- Create and start a ZooKeeper service if one doesn't exist.
- Go to the HDFS service.
- Click the Configuration tab.
- In the Service-Wide category, set the ZooKeeper Service property to the ZooKeeper service.

Edit WD Fusion configuration element 'fusion.underlyingFs' to match the new nameservice ID in the cluster-wide core-site.xmlin your Hadoop manager.
E.g, change:

<property>
        <name>fusion.underlyingFs</name>
        <value>hdfs://vmhost08-vm0.bdfrem.wandisco.com:8020</value>
</property>

To:

<property>
        <name>fusion.underlyingFs</name>
        <value>hdfs://myCluster</value>
</property>

Click Save Changes to commit the changes.

On DC1

Copy /etc/hadoop/conf/core-site.xml into /opt/fusion-server/ directory. This should include the new added HA nameservice configurations.
Copy /etc/hadoop/conf/hdfs-site.xml into /opt/fusion-server/ corresponding IHC server directory. This should include the new added HA nameservice configurations.
Copy /etc/hadoop/conf/core-site.xml into /opt/fusion/ihc-server/'s corresponding IHC server directory. This should include the new added HA nameservice configurations.
Copy /etc/hadoop/conf/hdfs-site.xml into /opt/fusion/ihc-server/'s corresponding IHC server directory. This should include the new added HA nameservice configurations.
If Kerberos security is installed make sure the configurations are there as well: Setting up Kerberos with WD Fusion.
Restart the DC1 WD Fusion server and the corresponding IHC server
Now repeat the steps for the next HA-enabled Data Center, completing the steps from that data center.

4.3 Reporting

4.3.1 Consistency Check

The consistency check mechanism lets you verify that replicated HDFS data is consistent between sites.

API calls for triggering consistency checks

4.3.2 File Transfer Report

As a file is being pulled into the local zone, the trasfer is recorded in the WD Fusion server and can be monitored for progress.

Use the REST API filter by the replicated path and sort by ascending or descending "complete time" or "start time":

GET /dcone/fs/transfers?path=[path]&sortField=[startTime|completeTime]&order=[ascending|descending]

File transfer Report Output

Example output showing a completed and then in-progress transfer:

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<fileTransfers>
    <fileTransfer>
        <startTime>1426020372314</startTime>
        <elapsedTime>4235</elapsedTime>
        <completeTime>1426020372434</completeTime>
        <username>wandisco</username>
        <familyRepresentativeId>
            <nodeId>dconefs5-1</nodeId>
            <dsmId>93452fe3-c755-11e4-911e-5254001ba4b1</dsmId>
        </familyRepresentativeId>
        <file>/tmp/repl/isoDEF._COPYING_<;/file>
        <remoteFs>hdfs://vmhost5-vm4.frem.wandisco.com:8020</remoteFs>
        <origin>dc1<;/origin>
        <size>4148166656</size>
        <remaining>4014477312</remaining>
        <bytesSec>3.3422336E7</bytesSec>
        <percentRemaining>96.77714626516683</percentRemaining>
        <state>in progress</state>
    </fileTransfer>

    <fileTransfer>
        <startTime>1426019512082</startTime>
        <elapsedTime>291678</elapsedTime>
        <completeTime>1426019803760</completeTime>
        <username>wandisco</username>
        <familyRepresentativeId>
            <nodeId>dconefs5-1</nodeId>
            <dsmId>93452fe3-c755-11e4-911e-5254001ba4b1</dsmId>
        </familyRepresentativeId>
        <file>/tmp/repl/isoABC</file>
        <remoteFs>hdfs://vmhost5-vm4.frem.wandisco.com:8020</remoteFs>
        <origin>dc1</origin>
        <size>4148166656</size>
        <remaining>0</remaining>
        <bytesSec>1.4221733E7</bytesSec>
        <percentRemaining>0.0</percentRemaining>
        <state>complete</state>
    </fileTransfer>
</fileTransfers>

Output key with data type

Username: System user performing the transfer. (String)
File name: Name of the file being transferred. (String)
Remote FS: The file of the originating node. (URI)
Origin: The file's originating Zone. (String)
Size: The cumulative size of data transferred, including the file currently being transferred. (Long)
Appends: The number of appends that have been made to the file being transferred. (Long)
AppendSize: The size of the latest append.
Remaining: Remaining bytes still to be transferred for the latest append.(Long)
Percent remaining: Percentage of the file still to be transferred.(Double)
Bytes/Sec: The current rate of data transfer, i.e. Amount of file downloaded so far / elapsed download time. (Long)
State: One of "in progress", "incomplete", "completed", "deleted" or "failed".(TransferState)
In progress: means we are performing an initial pull of the file.
Appending: means data is currently being pulled and appended to the local file.
Append completed: means all available data has been pulled and appended to the local file, although more data could be requested later.

Note: files can be renamed, moved or deleted while we pull the data, in which case the state will become "incomplete".
When the remote file is closed and all of its data has been pulled, the state will then change to "Complete".
If a file is deleted while we are trying to pull the end state will be "deleted".
If the transfer fails the state will be "failed".
Start Time: The time when the transfer started. (Long)
Elapsed Time: Time that has so far elapsed during the transfer. Once the transfer completes it is then a measure of the time between starting the transfer and completing. (Long)
Complete Time: During the transfer this is an estimate for the complete time based on rate of through-put so far. Once the transfer completes this will be the actual time at completion. (Long)
Delete Time: If the file is deleted then this is the time the file was deleted from the underlying filesystem. (Long)

Record retention

Records are not persisted and are cleared up on a restart. The log records are truncated to stop an unbounded use of memory, and the current implementation is as follows:
For each state machine, if there are more than 1,000 entries in its list of transfers we remove the oldest transfers ,sorted by complete time, which are in a terminal state ("completed", "failed" or "deleted") until the size of the list is equal to 1,000. The check on the number of records in the list is performed every hour.

4.4 Deleting memberships

It is possible to delete memberships that are no longer required.

5. Settings

Set up a Custom Disk Monitor

Use this procedure to set up a custom monitor in WD Fusion UI's Disk Monitor tool.

The Monitoring Data tool monitors the disk usage of the WD Fusion software, providing a basic level of protection against it consuming all disk space. The tool also lets you set up your own monitors for user-selected resources.

Disk Monitor - not intended as a final word in system protection
The disk monitor is no substitute for dedicated, system-wide monitoring tools. Instead, it is intended to be a 'last stand' against possible disk space exhaustion that could lead to data loss or corruption.

Read our Recommendations for system-wide monitoring tools.

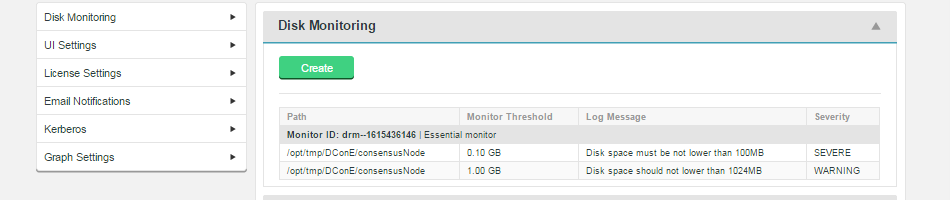

Log in to the WD Fusion UI. Click on the Settings tab.
Click on Disk Monitoring at the top of the side menu.

Settings - Disk monitor
Click Create.

Settings - Disk monitor
Enter the required details for setting up a disk monitor.

Settings - Disk monitor

File system path
Enter the full path of the system directory that will be monitored for disk usage.

Severity level
Select a system log severity level (Severe, Warning, Info or Debug) that will correspond with the Disk Capacity Threshold.

Caution Assigning a monitor with Severe level will impact operation should its trigger Disk Capacity Threshold be met. The affected WD Fusion will immediately shut down to protect its file system from corruption. Ensure that Severe level monitors are set up with a threshold that corresponds with serious risk. Set the threshold too low and you may find WD Fusion nodes are shutdown needlessly.

Disk Capcity Threshold (bytes)
The maximum amount of data that can be consumed by the selected system path before the monitor sends an alert message to the log file.

Message
A human-readible message that will be sent to the log at the point that the Disk Capacity Threshold is reached.

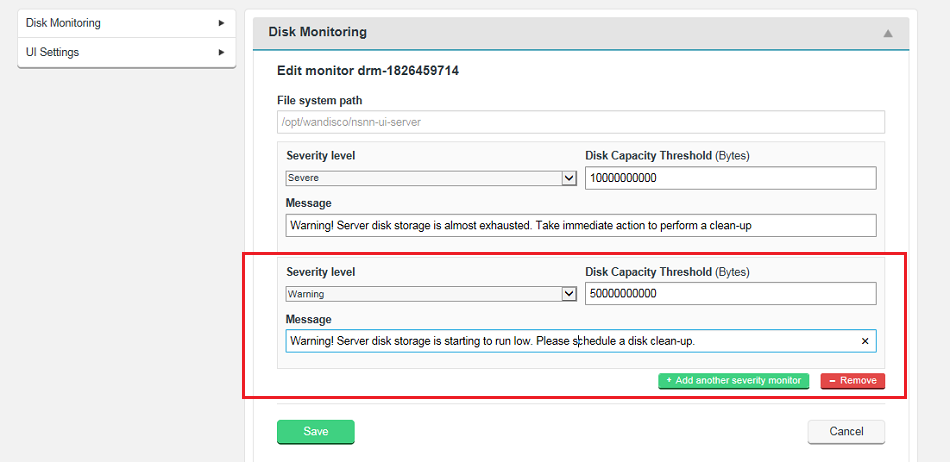

You can set a monitor to have multiple trigger points. Click + Add another severity monitor and add an additional Severity level, Disk Capacity Threshold and Message. You can have a separate monitor for each Log level.

Settings - Additional Disk monitors

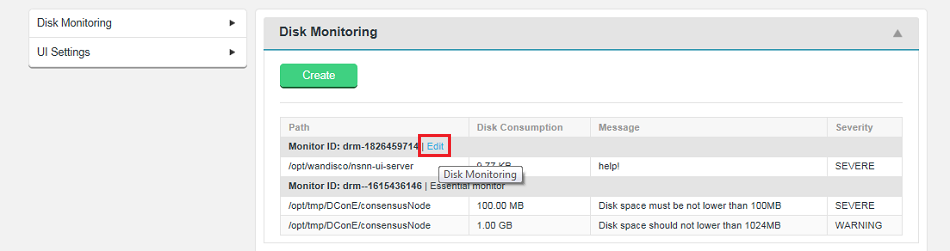

Edit a Disk Monitor

You can make changes to an existing custom monitor by clicking on the Edit

Settings - Change it

Caution You can't delete or modify the default Monitor which protects the system from disk space exhaustion from the temporary files created in the WANdisco replication directory /DConE/consensusNode

Change the UI Settings

You can change how you interact with WD Fusion UI through the browser. Use the following procedure to change either the HTTP or HTTP SSL port that is used to view the UI through a browser.

Log in to the WD Fusion UI. Click on the Settings tab.
Click on UI Settings link on the side menu.
Enter a new HTTP Port or HTTP SSL.

Settings - Change it
Click Update. You may need to update the URL in your browser to account for the change you just made.

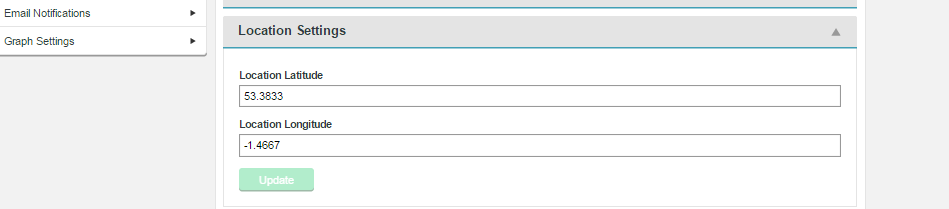

Setting up Node Location

WD Fusion is design to fit into deployments that have far-flug data centers. The Node Location setting is used to identify where in the world the data center is situated, using standard global positioning system coordinates. These coordinates will be used by any connected WD Fusion nodes to correctly place the node's location on the world map.

WD Fusion setting server location.

Set up email notifications

This section describes how to set up notification emails that will be triggered if one of the system resources that are graphed on the Dashboard breach a threshold.

SMPT Settings

Log in to the WD Fusion UI. Click on the Settings tab.
Click on Email Notifications link on the side menu or the main header bar.
Enter the details for your SMTP server.

Email Notification Settings

SMTP Host
The hostname or IP address for your email relay server.

SMTP Port
The port used by your email relay service. SMTP default port is 25.

Connection Encryption:
Drop-down for choosing the type of encryption that the mail server uses, None, SSL or TLS are supported. If SSL or TLS are selected you should make sure that you adjust the SMTP port value, if required.

Authentication
Checkbox for indicating that a username and password are required for connecting to the mail server. If you tick the checkbox additional entry fields will appear.

SMTP Username
A username for connecting to the email server.

SMTP Password
Apassword for connecting to the email server.

Test email to
Optional field for entering an email address that can be used for testing that the email setup will work.

Send Test Email
Button, click to send a sample notification email so that you can confirm that the email notification settings are working.

Save Settings
Button, click to store your email notification entries.
Click Update. You may need to update the URL in your browser to account for the change you just made.

Set up email messages

The notification emails content is not currently exposed to the UI. You can change it by making the following edit to the emailer.properties file.

Open a terminal to the WD Fusion. You will be making changed to configuration files so you need to be logged on as a system user with read-write permissions for system files.
Navigate to the WD Fusion UI's properties directory, e.g. /opt/wandisco/fusion-ui-server/properties/
Open the emailer.properties file in an editor, after creating a backup copy. If you can't see an email.properties file there, you may be able to track it down by opening the ui.properties file and looking for the line:
```
email.properties.path = path/to/email.properties
```

In the email.properties file, locate the message lines that correspond to those events that you want to edit:


# below properties have default values:
email.auth=false
email.encryption=NONE
email.from=namenode@example.com
email.host=smtp.example.com
email.password=4k9+9sWZ3/4=
email.port=25
email.username=

cpu_load_threshold_hit.enabled=false
cpu_load_threshold_hit.message=The following issue occured: %s
cpu_load_threshold_hit.subject=NonStop Name Node Alert
cpu_load_threshold_hit.to=

data_node_limit_count.enabled=false
data_node_limit_count.message=The following issue occured: %s
data_node_limit_count.subject=NonStop Name Node Alert
data_node_limit_count.to=

hdfs_usage_threshold_hit.enabled=false
hdfs_usage_threshold_hit.message=The following issue occured: %s
hdfs_usage_threshold_hit.subject=NonStop Name Node Alert
hdfs_usage_threshold_hit.to=

java_heap_usage_threshold_hit.enabled=false
java_heap_usage_threshold_hit.message=The following issue occured: %s
java_heap_usage_threshold_hit.subject=NonStop Name Node Alert
java_heap_usage_threshold_hit.to=

license_expiring.enabled=true
license_expiring.message=The following issue occured: %s
license_expiring.subject=NonStop Name Node Alert
license_expiring.to=support@example.com

Enable the message block by changing the enabled to true. Enter the messaging that you want for each notification event. You can for a new line by using a forward slash, i.e. "\".


cpu_load_threshold_hit.enabled=true
cpu_load_threshold_hit.message=Enter your own messaging here, allowing you to set more specific messaging for the alert. %s
cpu_load_threshold_hit.subject=NonStop Name Node Alert
cpu_load_threshold_hit.to=email address suitable for monitoring system failures

Check and save the changes. You do not need to restart anything for changes to take effect.

Notification Email

Notification emails that are sent out by WD Fusion UI are made up of the following parts:

Event Details- System generated description that appears as "%s" in the emailer.properties file. It contains the specific details of the message, including NameNode name and threshold level breached.

Message- The user-defined message placed in the emailer.properties file.
Footer- System generated list of node properties.

Event Details

TBD

Footer

Each email has a footer block added by the system which includes a lot of extra information useful for quickly troubleshooting problems.

HostName
IP Address
IP port
Node Name
Node Role
Node's manager
Node status
Node's zone
Node location
Node latitude
Node longitude
Memory usage
Disk usage
Last update
Time Now

Setting up Kerberos

If the Hadoop deployment is secured using Kerberos you need to enable Kerberos in the WD Fusion UI. Use the following procedure to enable Kerberos:

Look to the security procedures of your particular form of Hadoop.
- For Hortonworks/Ambari see Ambari Kerberos Setup .
- For Cloudera/CDH5 see CDH5 Security Guide and Hadoop Security
Generate Keytab for each of your WD Fusion nodes.
- On the KDC, using kadmin.local, create new principals for WD Fusion user and generate keytab file:
```
		> addprinc -randkey fusion/${hostname}@${krb_realm}
		> ktadd -k fusion.keytab -norandkey fusion/${hostname}@${krb_realm}

```
- Copy the generated keytab to /etc/hadoop/conf/ on the WD Fusion server.

Update the configuration on the Fusion servers, adding the following properties to core-site.xml.

<property>
     <name>fs.fusion.keytab</name>
     <value>/etc/hadoop/conf/fusion.keytab</value>
          </property>
          <property>
     <name>fs.fusion.principal</name>
     <value>fusion/{hostname}@{krb_realm}</value>
 </property>

fs.fusion.keytab: Path to generated keytab.
fs.fusion.principal: Principal for the keytab file.

Set up a proxy user on the NameNode, adding the following properties to core-site.xml on the NameNode(s).

<property>
        <name>hadoop.proxyuser.fusion.hosts</name>
        <value>*</value>
    </property>
    <property>
        <name>hadoop.proxyuser.fusion.groups</name>
        <value>*</value>
</property>

hadoop.proxyuser.$USERNAME.hosts: Defines hosts from which client can be impersonated.
hadoop.proxyuser.$USERNAME.groups: Defines groups that can be impersonated value can be a list comma separated or a wildcard (*).

Install Kerberos and enable for CHD

Setting up SSL encryption for DConE traffic

WD Fusion supports the use of Secure Socket Layer encryption (SSL) for securing its replication traffic. To enable this encryption you need to generate a keypair that must be put into place on each of your WD Fusion nodes. You then need to add some variables to the application.properties file.

Open a terminal and navigate to <INSTALL_DIR>/etc/wandisco/config.

Within /config make a new directory called ssl.
```
mkdir ssl
```

Navigate into the new directory.
```
cd ssl
```

Copy your private key into the directory. If you don't already have keys set up you can use JAVA's keygen utility, using the command:

keytool -genkey -keyalg RSA -keystore wandisco.ks -alias server -validity 3650 -storepass <YOUR PASSWORD>

Read more about the Java keystore generation tool in the KB article - Using Java Keytool to manage keystores

Ensure that the system account that runs the WD Fusion server process has sufficient privileges to read the keystore files.

Java keytool options

Variable Name	Description
-genkey	Switch for generating a key pair (a public key and associated private key). Wraps the public key into an X.509 v1 self-signed certificate, which is stored as a single-element certificate chain. This certificate chain and the private key are stored in a new keystore entry identified by alias.
-keyalg RSA	The key algorithm, in this case RSA is specified.
wandisco.ks	This is file name for your private key file that will be stored in the current directory.
- alias server	Assigns an alias "server" to the key pair. Aliases are case-insensitive.
-validity 3650	Validates the keypair for 3650 days (10 years). The default would be 3 months.
- storepass <YOUR PASSWORD>	This provides the keystore with a password.

If no password is specified on the command, you'll be prompted for it. Your entry will not be masked so you (and anyone else looking at your screen) will be able to see what you type.

Most commands that interrogate or change the keystore will need to use the store password. Some commands may need to use the private key password. Passwords can be specified on the command line (using the -storepass and -keypass options).
However, a password should not be specified on a command line or in a script unless it is for testing purposes, or you are on a secure system.

The utility will prompt you for the following information

What is your first and last name?  [Unknown]:
What is the name of your organizational unit?  [Unknown]:
What is the name of your organization?  [Unknown]:
What is the name of your City or Locality?  [Unknown]:
What is the name of your State or Province?  [Unknown]:
What is the two-letter country code for this unit?  [Unknown]:
Is CN=Unknown, OU=Unknown, O=Unknown, L=Unknown, ST=Unknown, C=Unknown correct?  [no]:  yes


Enter key password for <mykey>
(RETURN if same as keystore password):

With the keystore now in place, you'll now need to add variables to the application.properties

SSL DConE Encryption Variables for application.properties

Variable Name	Example	Description
ssl.enabled	true	Requires a "true" or "false" value. Clearly when the value is set to false, none of the other variables will be used.
ssl.debug	true	Requires a "true" or "false" value. When set to true debugging mode is enabled.
ssl.keystore	./properties/wandisco.ks	The path to the SSL private Keystore file that is stored in the node. By default this is called "wandisco.ks".
ssl.key.alias	wandisco	The assigned alias for the key pair. Aliases are case-insensitive.
ssl.keystore.password	<a password>	The SSL Key password.
ssl.truststore	./properties/wandisco.ks	The path to the SSL private truststore file that is stored in the node. By default this is called "wandisco.ks" because, by default the keystore and truststore are one and the same file, although it doesn't have to be.
ssl.truststore.password	"bP0L7SY7f/4GWSdLLZ3e+	The truststore password. The password should be encrypted.

Changes in any of these values require a restart of the DConE service. Any invalid value will restart the replicator and no DConE traffic will flow.

Setting the server key

In the keystore, the server certificate is associate with a key. By default, we look for a key named server to validate the certificate. If you use a key for the server with a different name, enter this in the SSL settings.

SSL Troubleshooting

A complete debug of the SSL logging will be required to diagnose the problems. To capture the debugging, ensure that the variable debugSsl is set to "true".

To enable the logging of SSL implemented layer, turn the logging to FINEST for 'com.wandisco.platform.net' package.

Enable SSL for Hadoop Services

This section shows you how to enable SSL encryption for Hadoop's native services such as HDFS, Yarn or MapReduce.

On ALL nodes create key directories:

/etc/security/serverKeys and /etc/security/clientKeys

On all nodes, create keystore files:

cd /etc/security/serverKeys
keytool -genkeypair -alias $HOSTNAME -keyalg RSA -keysize 2048 -dname CN=$HOSTNAME,OU=Dev,O=BigData,L=SanRamon,ST=ca,C=us -keypass $PASSWORD -keystore $HOSTNAME.ks -storepass $PASSWORD

There's further explanation of what these options do, see the key Java keytool options

On all nodes export the certificate public key to a certificate file:

cd /etc/security/serverKeys
keytool -exportcert -alias $HOSTNAME -keystore $HOSTNAME.ks -rfc -file $HOSTNAME.crt -storepass $PASSWORD

On all nodes, import the certificate into truststore file:

cd /etc/security/serverKeys
keytool -importcert -noprompt -alias $HOSTNAME -file $HOSTNAME.crt -keystore $HOSTNAME.trust -storepass $PASSWORD

Create a single truststore file containing the public key from all certificates (this will be for clients) start on node1:
```
cd /etc/security/serverKeys
```
Copy trust store file from current node to next one and redo all steps above.
From last node copy trust store, which has all certificates to all servers under /etc/security/clientKeys/all.jks
On all nodes, copy keystore to "service".ks (e.g. hdfs.ks)

Keystores are used in two ways:

The keystore contains private keys and certificates used by SSL servers to authenticate themselves to SSL clients. By convention, such files are referred to as keystores.
When used as a truststore, the file contains certificates of trusted SSL servers, or of Certificate Authorities trusted to identify servers. There are no private keys in the truststore.

Most commonly, cert-based authentication is only done in one direction server->client. When a client also authenticates with a certificate this is called mutual authentication.

While all SSL clients must have access to a truststore, it is not always necessary to create and deploy truststores across a cluster. The standard JDK distribution includes a default truststore which is pre-provisioned with the root certificates of a number of well-known Certificate Authorities. If you do not provide a custom truststore, the Hadoop daemons load this default truststore. Therefore, if you are using certificates issued by a CA in the default truststore, you do not need to provide custom truststores. However, you must consider the following before you decide to use the default truststore:

If you choose to use the default truststore, it is your responsibility to maintain it. You may need to remove the certificates of CAs you do not deem trustworthy, or add or update the certificates of CAs you trust. Use the keytool utility to perform these actions.

- Using Java Keytool to manage keystores

Security Considerations

keystores contain private keys. truststores do not. Therefore, security requirements for keystores are more stringent:

Hadoop SSL requires that truststores and the truststore password be stored, in plaintext, in a configuration file that- is readable by all.
Keystore and key passwords are stored, in plaintext, in a file that is readable only by members of the appropriate group.

These considerations should guide your decisions about which keys and certificates you will store in the keystores and truststores that you will deploy across your cluster.

Keystores should contain a minimal set of keys and certificates. Ideally you should create a unique keystore for each host, which would contain only the keys and certificates needed by the Hadoop SSL services running on the host. Usually the keystore would contain a single key/certificate entry. However, because truststores do not contain sensitive information you can safely create a single truststore for an entire cluster. On a production cluster, such a truststore would often contain a single CA certificate (or certificate chain), since you would typically choose to have all certificates issued by a single CA.

Important: Do not use the same password for truststores and keystores/keys. Since truststore passwords are stored in the clear in files readable by all, doing so would compromise the security of the private keys in the keystore.

SSL roles for Hadoop Services

Service	SSL Role
HDFS	server and client
MapReduce	server and client
YARN	server and client
HBase	server
Oozie	server
Hue	client

SSL servers load the keystores when starting up. Clients then take a copy of the truststore and uses it to validate the server's certificate.

Configure SSL for HDFS, YARN and MapReduce

Before you begin

Ensure keystores/certificates are accessible on all hosts running HDFS, MapReduce or YARN. As these services also run as clients they also need access to the truststore. (As mentioned, it's okay to put the truststores on all nodes as you can't always determine which hosts will be running the relevant services.)

keystores must be owned by the hadoop group and have permissions 0440 (readable by owner and group). truststores must have permission 0444 (readable by all).

You'll need to specify the absolute paths to keystore and truststore files - these paths need to be valid for all hosts - this translates into a requirement for all keystore file names for a given service to be the same on all hosts.

Multiple daemons running on a host can share a certificate. For example, in case there is a DataNode and an Oozie server running on the same host, they can use the same certificate.

Configuring SSL for HDFS

In Ambari, navigate to the HDFS service edit the configuration.
Type SSL into the search filed to show the SSL properties.

Make edits to the following properties:

Property	Description
SSL Server Keystore File Location	Path to the keystore file containing the server certificate and private key.
SSL Server Keystore File Password	Password for the server keystore file.
SSL Server Keystore Key Password	Password that protects the private key contained in the server keystore.

If you don't plan to use the default truststore, configure SSL client truststore properties:

Property	Description
Cluster-Wide Default SSL Client Truststore Location	Path to the client truststore file. This truststore contains certificates of trusted servers, or of Certificate Authorities trusted to identify servers.
Cluster-Wide Default SSL Client Truststore Password	Password for the client truststore file.

We recommend that you also enable web UI authentication for the HDFS service, providing that you have already secuired the HDFS service. Enter web consoles in the search field to bring up Enable Authentication for HTTP Web-Consoles property. Tick the check box to enable web UI authentication.

Property Description

Enable Authentication for HTTP Web-Consoles Enables authentication for hadoop HTTP web-consoles for all roles of this service.
Now the necessary edits are complete, click Save Changes.
Follow the next section for setting up SSL for YARN/MapReduce.

Property	Description
Enable Authentication for HTTP Web-Consoles	Enables authentication for hadoop HTTP web-consoles for all roles of this service.

Configuring SSL for YARN / MapReduce

Navigate to the YARN or MapReduce service and click Configuration.
In the search field, type SSL to show the SSL properties.

Edit the following properties according to your cluster configuration:

Property	Description
SSL Server Keystore File Location	Path to the keystore file containing the server certificate and private key.
Enable Authentication for HTTP Web-Consoles	Password for the server keystore file.
SSL Server Keystore Key Password	Password for the client truststore file.

We recommend that you also enable web UI authentication for the HDFS service, providing that you have already secuired the HDFS service. Enter web consoles in the search field to bring up Enable Authentication for HTTP Web-Consoles property. Tick the check box to enable web UI authentication.

Property Description

Enable Authentication for HTTP Web-Consoles Enables authentication for hadoop HTTP web-consoles for all roles of this service.
Click Save Changes.
Navigate to the HDFS service and in the search field, type Hadoop SSL Enabled. Click the value for the Hadoop SSL Enabled property and select the checkbox to enable SSL communication for HDFS, MapReduce, and YARN.

Property Description

Hadoop SSL Enabled Enable SSL encryption for HDFS, MapReduce, and YARN web UIs, as well as encrypted shuffle for MapReduce and YARN.
Restart all affected services (HDFS, MapReduce and/or YARN), as well as their dependent services.

3. Administration Guide

3.1 Housekeeping

Starting up

Shutting down

init.d management script

Managing Services through the WD Fusion UI

WD Fusion UI Login

Login credentials

Checking cluster status on the dashboard

Server Logs Settings

3.2 Troubleshooting

Handling ThreadLocalRandom errors

Moving objects between mismatched filesystems

Handling file inconsistencies

Talkback

Locating Talkback

WD Fusion Non-Stop Toolbox

Running talkback

4. Managing Replication

4.1 Create a membership

Guide to nodes

4.2 Replicated Folders

Create a replicated folder

Set up the folder in WD Fusion UI

Configure Hadoop

Configure for High Availability Hadoop

On DC1

4.3 Reporting

4.3.1 Consistency Check

4.3.2 File Transfer Report

File transfer Report Output

Output key with data type

Record retention

4.4 Deleting memberships

5. Settings

Set up a Custom Disk Monitor

Edit a Disk Monitor

Change the UI Settings

Setting up Node Location

Set up email notifications

SMPT Settings

Set up email messages

Notification Email

Event Details

Footer

Setting up Kerberos

Install Kerberos and enable for CHD

Setting up SSL encryption for DConE traffic

Java keytool options

SSL DConE Encryption Variables for application.properties

Setting the server key

SSL Troubleshooting

Enable SSL for Hadoop Services

Keystores are used in two ways:

Security Considerations

SSL roles for Hadoop Services

Configure SSL for HDFS, YARN and MapReduce

Before you begin

Configuring SSL for HDFS

Configuring SSL for YARN / MapReduce
