WANDISCO FUSION®
BACKUP

1. Welcome

1.1. Product overview

Fusion Backup adds backup and data restoration capabilities to WANdisco Fusion’s Live Data environment. HCFS data can be snapshotted and stored within the WANdisco Fusion system, then, if required data from snapshots can be restored to your clusters, using WANdisco Fusion’s replication system.

Fusion Backup uses existing Fusion mechanisms for the replication of HDFS data to other clusters, extending the capability to include a system for capturing snapshots of state for a replicated location that can later be restored from earlier states. This includes administrative, application or user-initiated changes to HDFS content so that a user with suitable privileges can restore the state of a selected portion of the file system to that from a time before the error occurred.

Unlike some alternative mechanisms for backup, Fusion Backup does not require a dedicated cluster for holding backup content and state (a regular WANdisco Fusion zone can be marked for backup purposes on a per-location basis).

1.2. Documentation guide

This guide contains the following:

Welcome

This chapter introduces this user guide and provides help with how to use it.

Release Notes

Details the latest software release, covering new features, fixes and known issues to be aware of.

Concepts

Explains the basics of how Fusion Backup works and integrates with WANdisco Fusion.

Installation

Covers the steps required to install and set up Fusion Backup into a WANdisco Fusion deployment.

Operation

The steps required to run, reconfigure and troubleshoot Fusion Backup.

Reference

Additional Fusion Backup documentation, including documentation for the available REST API.

1.2.1. Symbols in the documentation

In the guide we highlight types of information using the following call outs:

The alert symbol highlights important information.
The STOP symbol cautions you against doing something.
Tips are principles or practices that you’ll benefit from knowing or using.
The i symbol shows where you can find more information, such as in our online Knowledgebase.

1.3. Contact support

See our online Knowledgebase which contains updates and more information.

If you need more help raise a case on our support website.

1.4. Give feedback

If you find an error or if you think some information needs improving, raise a case on our support website or email docs@wandisco.com.

2. Release Notes

2.1. Backup 5.0 Build 167

For the release notes and information on Known issues, please visit the Knowledge base - link: Release Notes: WANdisco Fusion Backup 5.0.

3. Concepts

Familiarity with the plugin architecture and underlying concepts helps you to understand how Fusion Backup works, what it does and how it is used.

3.1. Product concepts

This section describes the underlying principals and concepts that make Backup work.

Backup builds on WANdisco’s principle of offering the core LiveData product and then extending functionality through a family of plugins, allowing system administrators to tailor their deployments to exactly match their requirements.

Backup replicates backups between nodes within each zone, it does not replicate backups between zones. However, each zone in which you install Backup can be run with its own backup schedule, separate from those set in the other zones.

3.2. Architecture

This section describes the essential parts, helping to show how Backup functions.

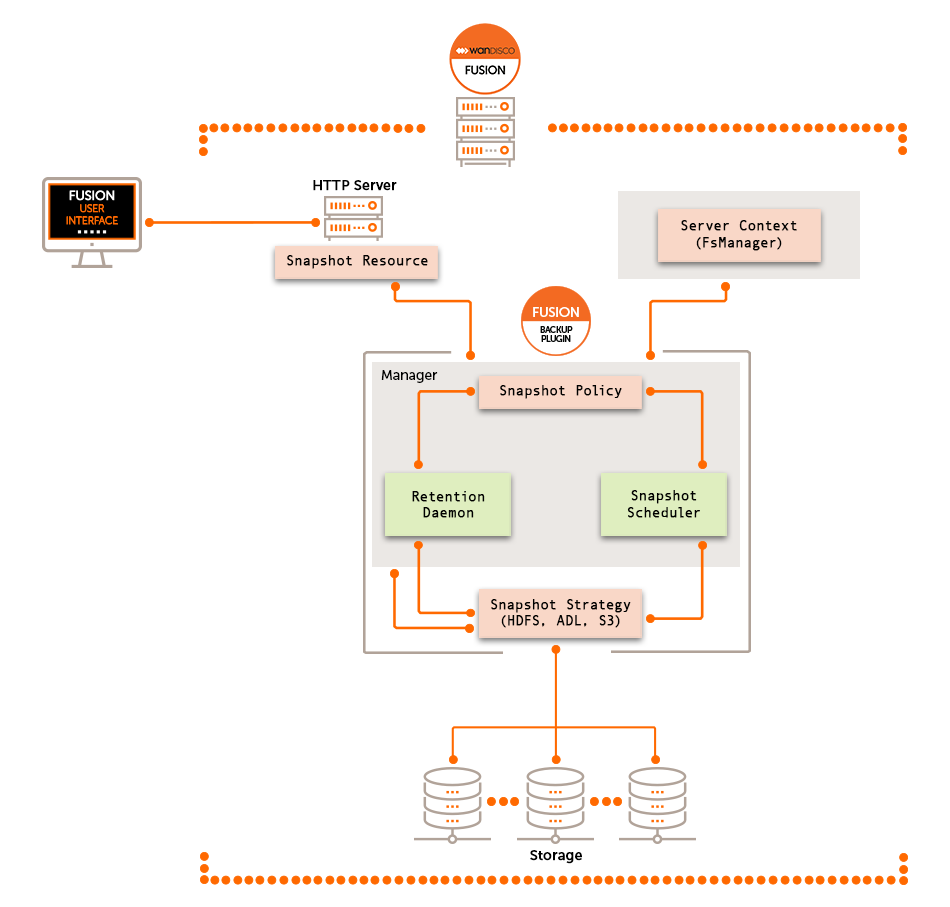

Fusion Backup Architecture
Figure 1. Fusion Backup Architecture
Backup Plugin

The Fusion Backup plugs into the WANdisco Fusion server, enabling it to use WANdisco Fusion’s feature set to generate HCFS snapshots.

Http Server

The Fusion Backup will contribute a new resource, the Snapshot Resource, where snapshot, recover, and listing functionality will be implemented via the REST API. More information on this is provided in the API Chapter.

Server Context

Fusion Backup needs a reference to the Server Context as it needs to use the FsManager and WANdisco Fusion’s GlobalPathProperties. The plugin needs to be able to identify which ReplicatedDirectories are available, and whether or not the WANdisco Fusion server is the writer.

Manager

The manager handles all logic except for actually snapshotting, recovering, and getting the snapshots. To do these, the manager will talk to the Snapshot strategy. The manager will then hold the state of the current snapshot policy, and along with the retention daemon and snapshot scheduler, work with the snapshot strategy to create or remove snapshots. The manager will also delegate requests from the resource to the snapshot strategy.

Snapshot Policy

The Snapshot Policy handles the configurations for every zone’s replicated directory’s snapshots, using WANdisco Fusion’s GlobalPathProperties, which replicates replicated directory-specific configurations across all nodes.

Snapshot Scheduler

The Fusion Backup will have a scheduler that uses cron jobs to schedule snapshots per replicated directory. The cron will be provided in the Snapshot Policy and is updated via API.

The scheduler schedules snapshots per Replicated Directory. When the Snapshot Policy is updated, the scheduler will add, remove, or edit the schedule of its policies.

Retention Daemon

The Plugin will also honor the retention period in the Snapshot policy by having a daemon that checks when old snapshots should be deleted. This daemon will run every hour, and will delete old snapshots.

Snapshot Strategy

The snapshot strategy is the storage-specific implementation of how snapshots and recoveries are handled.

3.2.1. Limitations

  • Backups can only be taken on the same underlying file system that WANdisco Fusion is already replicating.

  • Each zone in which Backup operates is independent of other zones, that is, backup operations are not replicated between zones, only between nodes within a zone. However, Fusion Backup must be deployed on all nodes in a given zone.

  • Only HDFS snapshots are supported in this version of Fusion Backup. Other storage types, such as S3 and ADL may be supported in future versions.

  • Replicated directories that are selected for backup must be able to be snapshotted. The snapshot is done by the consuming Fusion Server of the enableSnapshot API. The allowing of snapshots in HDFS can fail for the following reasons:

    • WANdisco Fusion doesn’t have permissions to snapshot (is not directory owner or is not HDFS super user).

    • Hadoop Namenode is in safemode.

    • A directory’s parent or subdirectory is already set up for snapshots. Nested snapshots are currently unsupported in HDFS (see Snapshottable Directories).

Any of the above conditions will stop a snapshot from being created. The call will fail immediately, and the snapshot will not be scheduled.

3.3. Supported Functionality

  • Create backups (in the form of HDFS snapshots) of data stored in Replicated Directories, based upon a user-defined schedule policy.

  • Backups are replicated between nodes in a zone, with the writer node handling the backup operation. In the event of the writer node failing, a new writer is nominated from the remaining pool of nodes and it will handle the next scheduled backup.

  • Backups are not replicated between zones. Each zone can operate its own set of backup policies.
    A backup policy is not the backup content, but sets the directory to be backed-up, the schedule and the maximum number of backup snapshots to be stored.

3.3.1. WANdisco Fusion LiveData Features

Backup provides a data backup mechanism that uses WANdisco Fusion’s LiveData.

3.4. Deployment models

3.4.1. Use Cases for the Fusion Backup

The following use cases illustrate how Fusion Backup may be integrated into different types of deployments to provide different levels of backup and recovery support.

Backup enabled in a single zone

An example of the resulting file system content across a two-zone deployment, with only the zone on the right having Backup installed and configured:

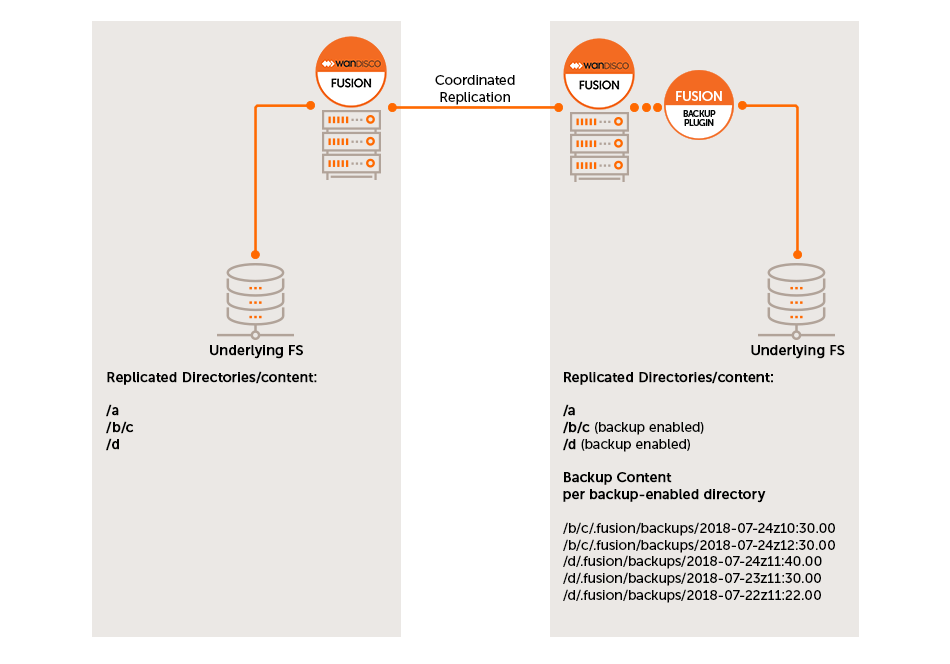

Backup enabled in a single zone
Figure 2. Backup enabled in a single zone

Backup is installed on the right-hand zone where /b/c and /d are set for periodic backup. While the contents of the replicated directories are also instanced on the other zone, no backups are created there.

Backup enabled in multiple zones

In the following example, the Fusion Backup is applied to directories within the replicated file system across a two-zone deployment, with both zones configured with different schedules and backup paths:

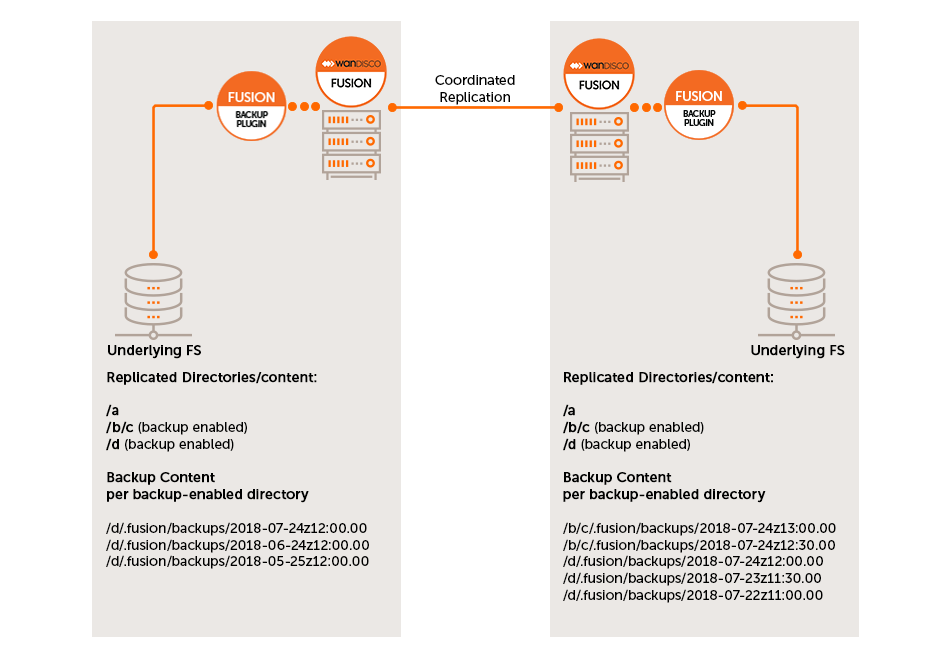

Backup enabled in multiple zones
Figure 3. Backup enabled in multiple zones

Backup is installed on both zones

Backup Location

Backups are stored in a .snapshot directory, located within the Replication Rule’s given path.

For example, if you have a replication rule applied to the path /repl1/araminta/ then you will see the backups for this rule in the following directory:

$ hdfs dfs -ls /repl1/araminta/.snapshot
Found 10 items
drwxrwxrwx   - hdfs hdfs          0 2018-10-14 23:00 /repl1/araminta/.snapshot/fusion-SCHEDULED-UTC-20181014T230000
drwxrwxrwx   - hdfs hdfs          0 2018-10-15 00:00 /repl1/araminta/.snapshot/fusion-SCHEDULED-UTC-20181015T000000
drwxrwxrwx   - hdfs hdfs          0 2018-10-15 01:00 /repl1/araminta/.snapshot/fusion-SCHEDULED-UTC-20181015T010000
drwxrwxrwx   - hdfs hdfs          0 2018-10-15 02:00 /repl1/araminta/.snapshot/fusion-SCHEDULED-UTC-20181015T020000

4. Installation

4.1. Pre-requisites

An installation should only proceed if the following prerequisites are met on each Backup Plugin node:

  • Hadoop Cluster

    • CDH 5.12.0 - CDH 5.14.0 & CDH 6.0 - 6.2

    • HDP 2.6.0 - HDP 2.6.4 & HDP 3.0 - 3.1

  • WANdisco Fusion 2.15

  • Java 8

It’s extremely useful complete some work before you begin a Backup deployment. The following tasks and checks will make installation easier and reduce the chance of an unexpected roadblock causing the installation to fail.

It’s important to make sure that the following elements meet the requirements that are set in the WANdisco Fusion Pre-requisites.

4.1.1. Server OS

One common requirement that runs through much of the deployment is the need for strict consistency between Backup nodes. Your nodes should, as a minimum, be running with the same versions of:

  • Hadoop/Manager software

  • Linux

    • Check to see if you are running a niche variant, e.g. Oracle Linux is compiled from RHEL but it is not identical to a RHEL installation.

  • Java 8

    • Ensure all nodes are running the same version of Java 8, on consistent paths.

4.1.2. Hadoop Environment

Confirm that your Hadoop clusters are working.

  • Ensure that as part of your base WANdisco Fusion installation, the node has a "fusion" system user account and group for Fusion services to run under on all Fusion nodes.

4.1.3. System Requirements

System requirements are as noted in the WANdisco Fusion Pre-requisites.

Note that the inclusion of Backup should not significantly change your platform’s data storage requirements as snapshots only store diffs rather than full copies of data.

4.2. Installation

This section runs through the steps required for getting Fusion Backup.

Apply these steps to all nodes in a zone. You can install Backup plugin across multiple zones but each zone will use its own backup schedules.

4.2.1. Installation components

The installation script contains an archive/RPM package with the following contents. You don’t need to interact with these files, but they can be listed by running:

rpm -qlp fusion-backup-plugin-hdfs-<version>.el6.noarch.rpm

4.2.2. Install the plugin

  1. Obtain the Fusion Backup installer from customer.wandisco.com and open a terminal session on your WANdisco Fusion node.

  2. Ensure the downloaded file is executable e.g.

    chmod +x backup-plugin-installer-<version>.sh
  3. Run the Backup Plugin installer e.g.

    sudo ./backup-plugin-installer-<version>.sh
  4. Enter Y to continue the installation. Once the installation is completed, the installer will offer to perform a necessary WANdisco Fusion server restart. You can enter Y to permit this or hold off the restart until later by entering N.

    ./backup-plugin-installer-<version>.sh
    Verifying archive integrity... All good.
    Uncompressing WANdisco Live Backup...............

        ::   ::  ::     #     #   ##    ####  ######   #   #####   #####   #####
       :::: :::: :::    #     #  #  #  ##  ## #     #  #  #     # #     # #     #
      ::::::::::: :::   #  #  # #    # #    # #     #  #  #       #       #     #
     ::::::::::::: :::  # # # # #    # #    # #     #  #   #####  #       #     #
      ::::::::::: :::   # # # # #    # #    # #     #  #        # #       #     #
       :::: :::: :::    ##   ##  #  ## #    # #     #  #  #     # #     # #     #
        ::   ::  ::     #     #   ## # #    # ######   #   #####   #####   #####

    You are about to install WANdisco Live Backup version <version>

    Do you want to continue with the installation? (Y/n) Y
      wd-backup-plugin-<version>.tar.gz ... Done
      fusion-ui-backup-plugin-<version>-dist.tar.gz ... Done
      fusion-backup-plugin-hdfs-<version>.el6-110.noarch.rpm ... Done
    All requested components installed.

    Running additional post install actions...
    Restarting fusion-server is required as part of plugin activation
    Do you wish to restart fusion-server now? (y/N) y
    Restarting WANdisco Fusion Server: fusion-server
    Stopped WANdisco Fusion Server process 27490 successfully.
    Started WANdisco Fusion Server process successfully.

    Go to your WANdisco Fusion UI Server to complete configuration.
    Erroneous output

    If you see the following output, please ignore it.

    Stopping fusion-ui-server:.[ OK ]
    Starting fusion-ui-server:[ OK ]
  5. Ensure that you repeat the installation on all WANdisco Fusion nodes in the zone. Once Fusion Backup is installed on all nodes within a zone, it will automatically activate.

    See the Troubleshooting section for how to check the Plugin’s status.

4.3. Activate Backup

Backup will automatically activate when it has been installed on all WANdisco Fusion nodes within a zone.

4.4. Validation

  1. Create a test backup schedule. Follow the procedure to Schedule a backup.

  2. Verify that the snapshot policy has been created, e.g.

    http://fusion-node-domain.com:8082/plugins/backup/getPolicy?path=/replicated/directory
  3. When the backup is created a Backup available label will appear on the Replicated Directories screen. Open a terminal and check that the snapshot is in place, e.g.

    hdfs dfs -ls /replicated/directory/.snapshot

    drwxrwxrwx   - hdfs supergroup          0 2018-10-22 12:10 /replicated/directory/.snapshot/fusion-SCHEDULED-UTC-<timestamp>

4.5. Uninstallation

The following procedure removes Backup from a node.

Apply these steps to all nodes in a zone.
  1. Stop the WANdisco Fusion core and UI servers, e.g.

    service fusion-server stop
    service fusion-ui-server stop
  2. Remove the plugin using the package manager command applicable to your environment, e.g.

    yum erase -y fusion-backup-plugin-hdfs*
  3. Remove the plugin installation files, e.g.

    rm -rf /opt/wandisco/fusion-ui-server/ui-client-platform/plugins/wd-backup-plugin/
    rm -rf /opt/wandisco/fusion-ui-server/plugins/fusion-ui-backup-plugin-<version>/
  4. Start the WANdisco Fusion servers, e.g.

    service fusion-server start
    service fusion-ui-server start

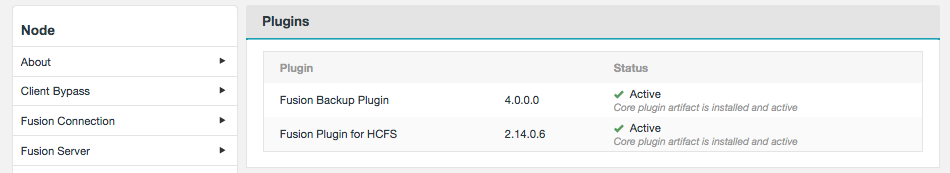

  5. Login to the WANdisco Fusion UI and check the Plugins section under the Settings tab to ensure the plugin has been removed.

  6. Repeat the steps on each node in the zone.

5. Operation

This section describes how to use Backup to schedule backups.

5.1. Configuration

You can select to have Backup plugin create snapshots of any number of selected directories on any number of zones, based on schedules that may differ on each zone. Backed up content is stored in a timestamped location directory, by default it is located here:

Scheduled snapshots
/<replicated-directory>/.snapshot/fusion-scheduled-UTC-20180910T225424/dir/file

The following rules apply for taking snapshots.

  • In HDFS, the .snapshot directory and all its contents are set to read only, so no edits can be made to snapshots. If a Replicated Directory can be snapshotted, then the directory owner or the HDFS superuser are the only system user that may create the snapshot.

  • You cannot snapshot a subdirectory of a Replicated Directory that is already being snapshotted.

Although there’s currently no mechanism for manually triggering a backup, you may trigger one manually via HDFS Snapshotting, and providing that you specify the .snapshot directory as the save location.

5.2. Administration

5.2.1. Backup tab

When Backup is installed on all nodes within a zone, the plugin will automatically activate. Once activated, a Backup tab will be appear on all Replication Rules screens.

Fusion Backup Tab
Figure 4. Fusion Backup Tab
Backup Status

The backup status of each Replication Rule is noted as a label on the Replication Rules list.

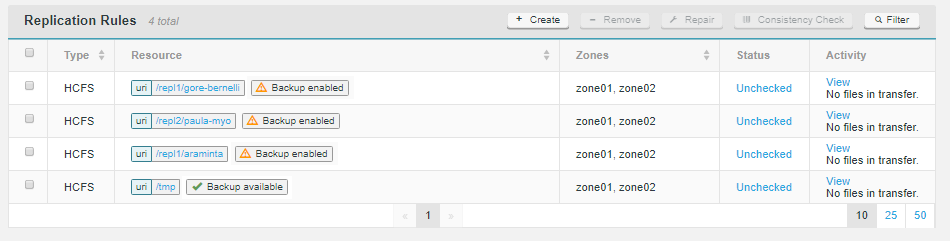

Fusion Backup Status
Figure 5. Fusion Backup Status
Backup available

The replication rule’s file path can be backed up.

Backup enabled

A backup schedule is in place on this replication rule.

Reports the status of the following:

Last backed up

This shows you when the last backup was created, in terms of how long ago, followed by the specific date and time.

Next scheduled backup in

Shows how long till the next scheduled backup, followed by the date and time.

Schedule Backup

Schedule a backup for this replication rule at an interval. Note that schedule time is in UTC.

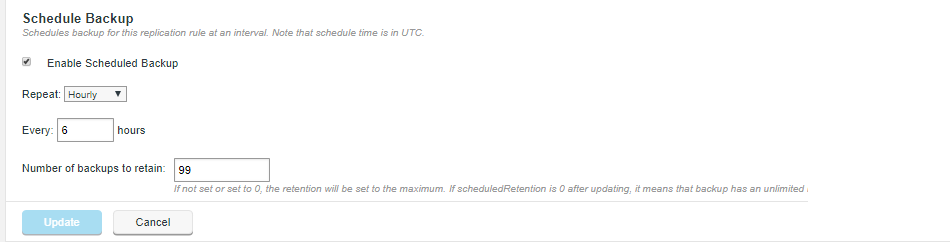

Fusion Backup - hourly backup
Figure 6. Fusion Backup - hourly backup

Replication occurs on the hour following the scheduling of a backup for a corresponding replication rule. e.g. If the replication starts at 10:00 a.m., the first back up will occur at 11:00 a.m.

Enable Scheduled Backup [Checkbox]

Tick this checkbox to enable a periodic backup, based on your provided schedule settings.

Scheduled backup settings
Repeat [Dropdown]

Select from the available dropdown values - Hourly, Daily and Weekly.

Every date at

Provide time increments that correspond with your selected Repeat.
Hourly - Every x hours (select a number of hours)
Daily - Every day at x : y (hours and minutes)
Weekly - Every x at y: z (day, hours and minutes)

Number of backups to retain

Sets the limit of how many backups to store. When this number of backups is reached, each new backup will replace the oldest of the stored backups. For the maximum number of permitted backups (65,536), leave the entry field blank or set to 0.

Setting no limit to backup may consume large amounts of storage. Ensure that your system has a suitable monitor in place to ensure that storage space doesn’t get exhausted.

5.2.2. Setting up a backup

Use this procedure for setting up a backup. Remember, backups are not replicated, they are created per-zone.

  1. Select or create a replication rule. Click on the rule.

    Click on rule to backup
    Figure 7. Click on rule to backup
  2. Click on the Backup tab.

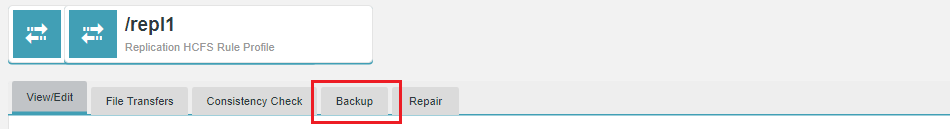

    Click on Backup tab
    Figure 8. Click on Backup tab
  3. Enter the backup settings (detailed here) and tick the Enable schedule checkbox.

    Enable Scheduled Backup
    Figure 9. Enable Scheduled Backup
  4. You can view the resulting Schedule Policy via the following API call through your browser:

    http://docs01-vm1.bdfrem.wandisco.com:8082/plugins/backup/getPolicy?path=/misthios/sword

    Backup policy output:

    <policy>
    <path>/misthios/sword</path>
    <schedule>0 1 12 ? * 4</schedule>
    <scheduledRetention>88</scheduledRetention>
    <requestedCapacity>0</requestedCapacity>
    </policy>
The requestedCapacity property is not yet supported. It will be used in a future version of Backup for requested (non-scheduled) backups.

See more examples in the REST API section.

5.2.3. Recovering data from a backup

To recover accidental deletion or data error, replicated data is restored by copying the applicable data from its snapshot’s path, e.g.,

hdfs dfs -cp /replication/path/.snapshot/<snapshot name> /snapshotted/data/

This will restore the lost set of files and directories to the working data set.

Recovering from backups won’t work like a version control system, files and directories are not deleted if you recovery data from a point in time earlier than those files/directories were created.
Performing a data Recovery (Command-line)

Once you identify where data has been deleted/mistakenly overwritten or corrupted, use the following procedure to complete a recovery:

  1. Login to the node on which you need to make the repair using the appropriate system user, in this example, running as hdfs.

  2. Check the location of the data that you intend to recover. In this example, the contents of a file "zeus.dat" in the directory kronos/children have been mistakenly blanked.

    hdfs dfs -ls /kronos/children/

    Found 3 items
    drwx------   - hdfs supergroup          0 2018-10-18 13:17 /kronos/children/.fusion
    -rw-r--r--   3 hdfs supergroup   33551597 2018-10-18 13:17 /kronos/children/demeter.dat
    -rw-r--r--   3 hdfs supergroup   33551597 2018-10-18 13:17 /kronos/children/hades.dat
    -rw-r--r--   3 hdfs supergroup          5 2018-10-22 10:52 /kronos/children/zeus.dat
  3. To recover the file, identify which stored backup is suitable for recovery, you may need to check back further than the latest snapshot, depending on when the mistaken overwrite occurred. You could use the snapshotDiff command to compare snapshots to see which snapshot to use for the recovery. See Using snapshotDiff.

    hdfs dfs -ls /kronos/children/.snapshot

    Found 87 items
    ...
    drwxrwxrwx   - hdfs supergroup          0 2018-10-22 02:00 /kronos/children/.snapshot/fusion-SCHEDULED-UTC-20181022T020005
    drwxrwxrwx   - hdfs supergroup          0 2018-10-22 03:00 /kronos/children/.snapshot/fusion-SCHEDULED-UTC-20181022T030000
    drwxrwxrwx   - hdfs supergroup          0 2018-10-22 04:00 /kronos/children/.snapshot/fusion-SCHEDULED-UTC-20181022T040000

    Search/grep the available snapshots for the version of zeus.dat that we want to restore.

  4. Having decided that the snapshot created at 02:00 is the last one to store the correct version of zeus.dat, run the following command. Note that the -f is required to force the overwrite of the incorrect version of zeus.dat, you wouldn’t need this if the file has been deleted.

    hdfs dfs -cp -f /kronos/children/.snapshot/fusion-SCHEDULED-UTC-20181022T020005/zeus.dat /kronos/children/
  5. Recheck the hdfs directory to confirm the restored file is in place.

    hdfs dfs -ls /kronos/children/
    Found 4 items
    drwx------   - hdfs supergroup          0 2018-10-18 13:17 /kronos/children/.fusion
    -rw-r--r--   3 hdfs supergroup   33551597 2018-10-18 13:17 /kronos/children/demeter.dat
    -rw-r--r--   3 hdfs supergroup   33551597 2018-10-18 13:17 /kronos/children/hades.dat
    -rw-r--r--   3 hdfs supergroup   33551597 2018-10-22 11:03 /kronos/children/zeus.dat

5.3. Troubleshooting

5.3.1. How to check the plugin’s status

You can confirm that the plugin has been successfully installed by checking the Plugins section of the Settings tab. This can also be viewed on the Plugins Status panel in the Fusion UI Dashboard.

Fusion Backup status - Settings > Plugins
Figure 10. Fusion Backup status - Settings > Plugins

5.3.2. If a backup fails

The WANdisco Fusion UI gives no warning if a backup has not been created. If error logging is required you will need to set this up using external tooling and processes.

A backup may fail in the following circumstances:

  • Replicated directory is removed.

  • Replicated directory is set to no longer support the creation of hcfs snapshots.

  • Replication directory permissions are adversely changed.

  • Available storage space is exhausted.

5.3.3. Backup logs

WANdisco Fusion logs will carry backup related messaging in the following locations:

  • WANdisco Fusion server logs - /var/log/fusion/server

  • IHC server logs - /var/log/fusion/ihc

  • WANdisco Fusion UI server logs - /var/log/fusion/ui

6. Reference Guide

6.1. HDFS snapshots

For an overview of HDFS snapshots including limitations and example usage, see the Apache documentation here.

6.1.1. Snapshot tips and tools

User Operations

See the links below to the Apache documentation for the following HDFS snapshot user operations:

Fusion Backup operations will ignore snapshots that do not include the prefix fusion-SCHEDULED-UTC-<YYYYMMDDThhmmss>.

Example

hdfs snapshotDiff /kronos/children fusion-SCHEDULED-UTC-20181018T140000 fusion-SCHEDULED-UTC-20181022T130000
Difference between snapshot fusion-SCHEDULED-UTC-20181018T140000 and snapshot fusion-SCHEDULED-UTC-20181022T130000 under directory /kronos/children:
M	.
+	./zeus.dat
-	./zeus.dat
M	./.fusion/fdb55089-d2d7-11e8-ae1f-fe6664333694
+	./.fusion/fdb55089-d2d7-11e8-ae1f-fe6664333694/metadata
M	./.fusion/fdb55089-d2d7-11e8-ae1f-fe6664333694/gsn/d0
+	./.fusion/fdb55089-d2d7-11e8-ae1f-fe6664333694/gsn/d0/2776
+	./.fusion/fdb55089-d2d7-11e8-ae1f-fe6664333694/gsn/d0/2777
+	./.fusion/fdb55089-d2d7-11e8-ae1f-fe6664333694/gsn/d0/2779
+	./.fusion/fdb55089-d2d7-11e8-ae1f-fe6664333694/gsn/d0/2791
<SNIPPED>
Snapshots are read-only

Since snapshots are read-only, HDFS will also protect against user or application deletion of the snapshot data itself. The following operation will fail:

hdfs dfs -rm -r /replication/path/.snapshot/<snapshot name> /snapshotted/data/

For information on how to delete snapshots, see the Apache documentation.

6.2. API

Fusion Backup offers increased control and flexibility through a RESTful (REpresentational State Transfer) API.

Below are listed some example calls that you can use to guide the construction of your own scripts and API driven interactions.

API documentation is still in development:
Note that this API documentation continues to be developed. Contact our support team if you have any questions about the available implementation.

Note the following:

  • All calls use the base URI:

    http://<host>:<post>/plugin/backup
  • The internet media type of the data supported by the web service is application/xml.

  • The API is hypertext driven, using the following HTTP methods:

Type Action

POST

Create a resource on the server

GET

Retrieve a resource from the server

PUT

Modify the state of a resource

DELETE

Remove a resource

Available API REST endpoints are listed below.

6.2.1. enableBackup

Enable backup on the Replicated Directory of the current zone. Internally, this just updates the storage policy.

Type: PUT

Path: /enableBackup

Parameters

Required:

  • String path

  • String schedule

  • int scheduleRetention

Optional:

  • int requestedCapacity

Return

202 if successful, otherwise an error response.

example
curl --negotiate -u : -v -s -X PUT "Content-Type: application/xml" "http://<hostname>:<port>/plugins/backup/enableBackup?path=/<filepath>&schedule=<schedule-in-cron-format>&scheduledRetention=<numberOfBackupsStored>"

Sets the following parameters:

path

the path to the replicated folder

schedule

Cron schedule for backup

scheduleRetention

The maximum number of scheduled backups to be stored

Consider the following hard limit: scheduleRetention + manualCapacity < 65436.
<backupPolicy>
	         <schedule>0/5+14,18,3-39,52+*+?+JAN,MAR,SEP+MON-FRI+2002-2010</schedule>
	         <scheduledRetention>10</scheduledRetention>
           <requestedCapacity>15</requestedCapacity>
</backupPolicy>

6.2.2. disableBackup

Disables backup on the Replicated Directory of the current zone. Internally, this just updates this storage policy.

Type: PUT

Path: /disableBackup

Parameters

Required:

  • String path

Return

202 if successful, otherwise an error response.

6.2.3. getPolicy

Gets the policy for all paths or for a given path when specified.

Parameters

Required:

String path (defaults to retrieving all snapshot policies for a zone, but if a path is supplied, this REST call will retrieve just the snapshot policy of that path)

Examples:

All policies:

curl --negotiate -u : -v -s -X GET "Content-Type: application/xml" "http://<hostname>:<port>/plugins/backup/getPolicy"

Policy for one path:

curl --negotiate -u : -v -s -X GET "Content-Type: application/xml" "<hostname>:<port>/plugins/backup/getPolicy?path=/replDir"

6.2.4. updatePolicy

Updates an existing policy for a path.

Parameters

Required:

  • String path of replicated directory with enabled backups

  • At least one of the two optional parameters:

    • String schedule

    • Long retention

Examples:

curl --negotiate -u : -v -s -X PUT "Content-Type: application/xml" "http://<hostname>:<port>/plugins/backup/updatePolicy?path=/<replDir>&schedule=<schedule-in-cron-format>&scheduledRetention=<numberOfBackupsStored>"

6.2.5. getBackups

Gets all existing snapshots of a replicated directory.

Parameters

Required:

  • String path

Example:

curl --negotiate -u : -v -s -X GET "Content-Type: application/xml" "http://<hostname>:<port>/plugins/backup/getBackups?path=/replDir"
