4 Setup

If the installation requirements in the previous section have been met, setup should take 20 minutes or less to get a basic WANdisco Security Agent configured.

1. To begin the setup process run:

   Security_Agent_root/bin/setup [port]


   If no port parameter is specified the default port 6444 will be used. This port is used for web administration.

   Once the server has started it will log a message to point a web browser to http://server:port/. Please note that server should be replaced with the IP address or machine name that the WANdisco Security Agent is being installed to.

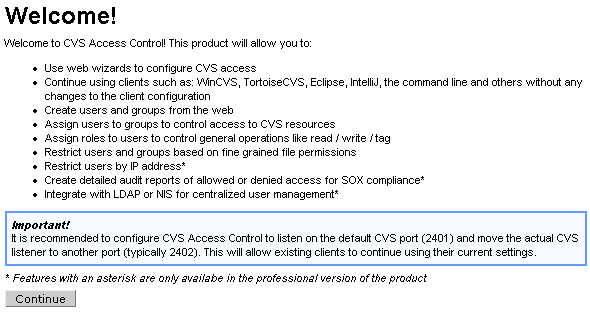

2. You should see the welcome screen. After reading this page click Continue

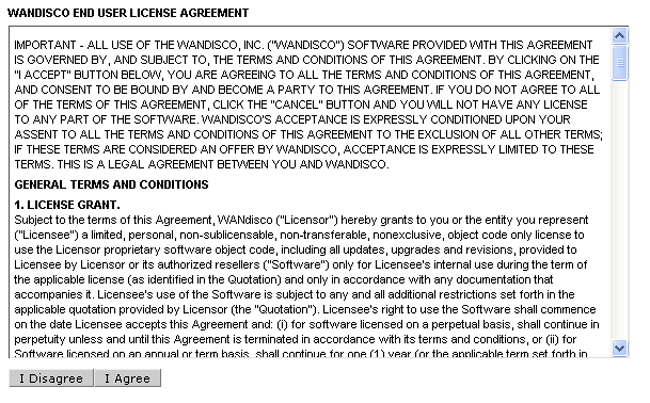

3. The next page requires acceptance of the EULA to continue

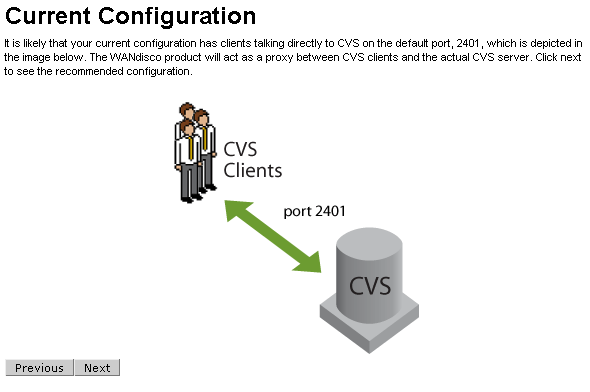

4. This page depicts a standard installation of CVS

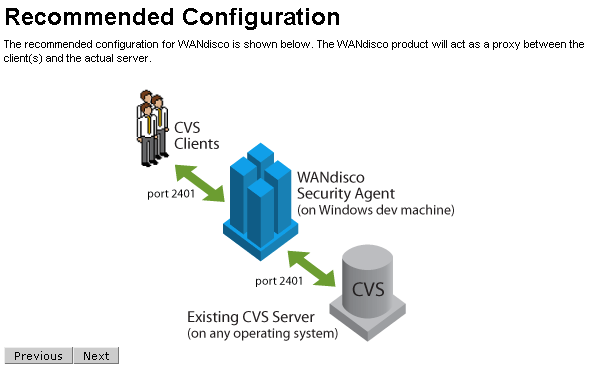

5. On the next screen you will see the recommended configuration

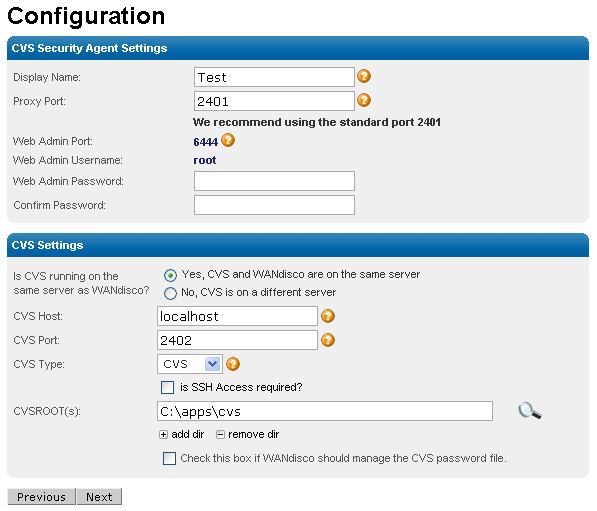

6. This page allows you to configure the Security Agent
   1. Display Name - a friendly name for the Security Agent
   2. MAC Address - the MAC address of the machine. This can be acquired by running ifconfig. If it is not found in the path it may be in the /sbin or /usr/sbin directory.
   3. Host - the host name or ip address of the SCM server
   4. Port - the port which will be used as the proxy port for CVS (typically 2401). This is the port which CVS clients will connect to
   5. CVS Port - the port where CVS is actually running (typically 2402). This is the port which the Security Agent will send client requests after their security access has been verified.
   6. CVS Type - CVS or CVSNT. Using CVSNT is not recommended because CVSNT itself is unstable and can be verified by looking at the CVSNT forums.

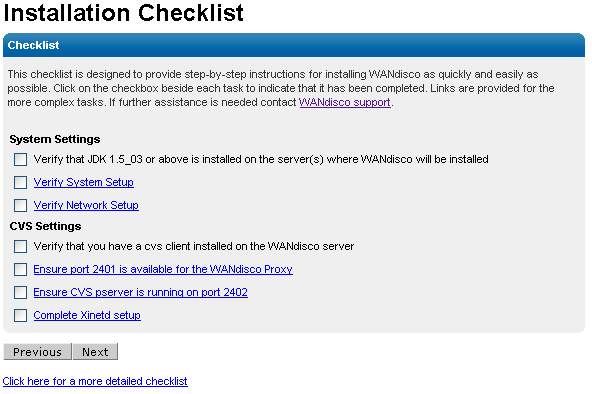

7. The Installation Checklist page provides a checklist of tasks which must be completed prior to the installation of the replicator. Please be sure to perform and check each of the tasks on the list prior to proceding.
   1. System settings
      1. JDK must be version 1.5 or above.
      2. The link provided displays the minimum requirements of each system. Please verify that these requirements are met.
      3. The link provided displays the minimum requirements of the network. Please verify that these requirements are met.

   2. CVS Settings
      1. Verify that the CVS client is installed on the WANdisco server.
      2. Ensure that port 2401 is available for the WANdisco proxy.
      3. Ensure that the CVS pserver port has been moved to port 2402.
      4. Complete Xinetd setup.
      5. At the bottom there is a link to a more detailed explanation of the installation checklist.

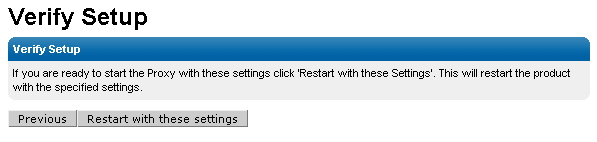

8. This next page will allow the user a chance to check the settings. When all of the settings are in place click on the restart button. Now the product will activate itself and restart with the specified configuration and license.

9. The default login username is root and the password is specified during install:
