WD Fusion Deployment

6. Reference Guide

The reference guide walks through WD Fusion's various screens, providing a basic explanation of what everything does. For specific instruction on how to perform a particular task, you should view the Admin Guide

Technical Overview

What is WANdisco Fusion

WANdisco Fusion (WD Fusion) shares data between two or more clusters. Shared data is replicated between clusters using DConE, WANdisco's proprietory coordination engine. This isn't a spin on mirroring data, every cluster can write into the shared data directories and the resulting changes are coordinated in real-time between clusters.

100% Reliablity

Paxos-based algorithms enable DConE to continue to replicate even after brief networks outages, data changes will automatically catch up once connectivity between clusters is restored.

Below the coordination stream, actual data transfer is done as an asynchronous background process and doesn't consume MapReduce resources.

Replication where and when you need

WD Fusion supports Selective replication, where you control which data is replicated to particular clusters, based on your security or data management policies. Data can be replicated globally if data is available to every cluster or just one cluster.

Fusion

The Benefits of WANdisco Fusion

  • Ingest data to any cluster, sharing it quickly and reliably with other clusters. Removing fragile data transfer bottlenecks, and letting you process data at multiple places improving performance and getting you more utilization from backup clusters.
  • Support a bimodal or multimodal architecture to enable innovation without jeopardizing SLAs. Perform different stages of the processing pipeline on the best cluster. Need a dedicated high-memory cluster for in-memory analytics? Or want to take advantage of an elastic scale-out on a cheaper cloud environment? Got a legacy application that's locked to a specific version of Hadoop? WANdisco Fusion has the connections to make it happen. And unlike batch data transfer tools, WANdisco Fusion provides fully consistent data that can be read and written from any site.
  • Put away the emergency pager. If you lose data on one cluster, or even an entire cluster, WANdisco Fusion has made sure that you have consistent copies of the data at other locations.
  • Set up security tiers to isolate sensitive data on secure clusters, or keep data local to its country of origin.
  • Perform risk-free migrations. Stand up a new cluster and seamlessly share data using WANdisco Fusion. Then migrate applications and users at your leisure, and retire the old cluster whenever you're ready.

6.2 A Primer on Paxos

Replication networks are composed of a number of nodes, each node takes on one of a number of roles:

Acceptors (A)

The Acceptors act as the gatekeepers for state change and are collected into groups called Quorums. For any proposal to be accepted, it must be sent to a Quorum of Acceptors. Any proposal received from an Acceptor node will be ignored unless it is received from each Acceptor in the Quorum.

Proposers (P)

Proposer nodes are responsible for proposing changes, via client requests, and aims to receive agreement from a majority of Acceptors.

Learners (L)

Learners handle the actual work of replication. Once a Client request has been agreed on by a Quorum the Learner may take the action, such as executing a request and sending a response to the client. Adding more learner will improve availability for the processing.

Distinguished Node

It's common for a Quorum to be a majority of participating Acceptors. However, if there's an even number of nodes within a Quorum this introduces a problem: the possibility that a vote may tie. To handle this scenario a special type of Acceptor is available, called a Distinguished Node. This machine gets a slightly larger vote so that it can break 50/50 ties.

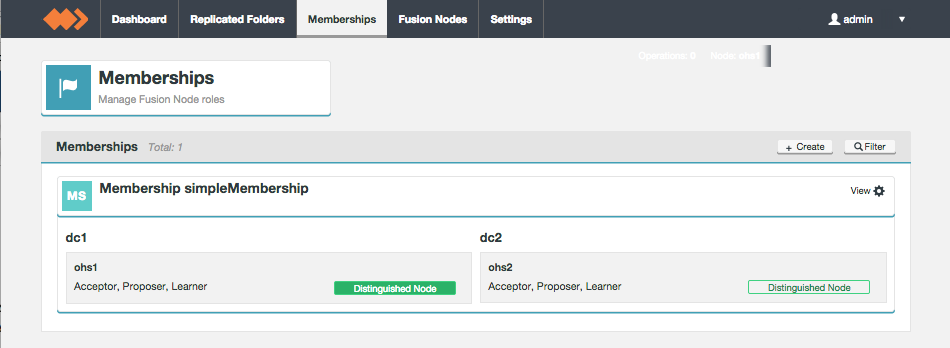

6.3 Paxos Node Roles in DConE

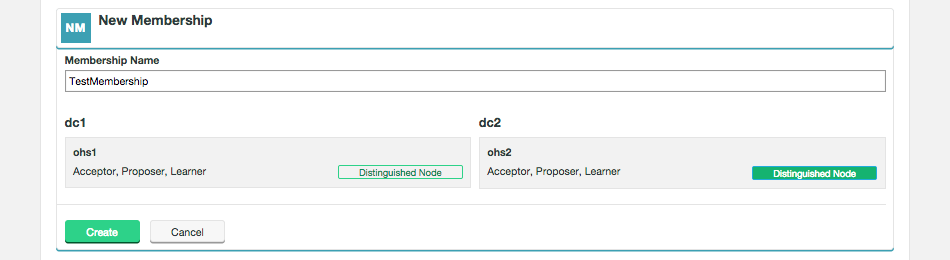

When setting up your WD Fusion servers they'll all be Acceptors,Proposers and Learners. In a future version of the product you'll then be able to modify each WD Fusion server's role to balance between resilience and performance, or to remove any risk of a tied vote.

Creating resilient Memberships

WD Fusion is able to maintain HDFS filesystem replication even after the loss of WD Fusion nodes from a cluster. However, there are some configuration rules that are worth considering:

Rule 1: Understand Learners and Acceptors

The unique Active-Active replication technology used by WD Fusion is an evolution of the Paxos algorithm, as such we use some Paxos concepts which are useful to understand:

  • Learners:
    Learners are the WD Fusion nodes that are involved in the actual replication of Namespace data. When changes are made to HDFS metadata these nodes raise a proposal for the changes to be made on all the other copies of the filesystem space on the other data centers running WD Fusion within the membership.

    Learner nodes are required for the actual storage and replication of hdfs data. You need a learner node where ever you need to store a copy of the shared hdfs data.

  • Acceptors:
    All changes being made in the replicated space at each data center must be made in exactly the same order. This is a crucial requirement for maintaining synchronization. Acceptors are nodes that take part in the vote for the order in which proposals are played out.

    Acceptor Nodes are required for keeping replication going. You need enough Acceptors to ensure that agreement over proposal ordering can always be met, even after accounting for possible node loss. For configurations where there are a an even number of Acceptors it is possible that voting could become tied. For this reason it is possible to make an Acceptor node into a tie-breaker which has slightly more voting power so that it can outvote another single Acceptor node.

Rule 2: Replication groups should have a minimum membership of three learner nodes

Two-node clusters (running two WD Fusion servers) are not fault tolerant, you should strive to replicate according to the following guideline:

  • The number of learner nodes required to survive population loss of N nodes = 2N+1
    where N is your number of nodes.

    So in order to survive the loss of a single WD Fusion server equipped datacenter you need to have a minium of 2x1+1= 3 nodes
    In order to keep on replicating after losing a second node you need 5 nodes.

Rule 3: Learner Population - resilience vs rightness

  • During the installation of each of your nodes you can configure the Content Node Count number, this is the number of other learner nodes in the replication group that need to receive the content for a proposal before the proposal can be submitted for agreement.

    Setting this number to 1 ensures that replication won't halt if some nodes are behind and have not received replicated content yet. This strategy reduces the chance that a temporary outage or heavily loaded node will stop replication, however, it also increases the risk that namenode data will go out of sync (requiring admin-intervention) in the event of an outage.

Rule 4: 2 nodes per site provides resilience and performance benefits

Running with two nodes per site provides two important advantages.

  • Firstly it provides every site with a local hot-backup of the namenode data.
  • Enables a site to load-balance namenode access between the nodes which can improve performance during times of heavy usage.
  • Providing the nodes are Acceptors, it increases the population of nodes that can form agreement and improves resilience for replication.

WD Fusion Configuration

This section lists the available configuration for WD Fusion's component applications. You should take care making any configuration changes on your clusters.

WD Fusion Server

WD Fusion server configuration is stored in two files:
/opt/fusion-server/application.properties
Property Description Permitted Values Default Checked at...
application.port The port DConE uses for communication. 1-65535 6444 Startup
data.center The zone where the Fusion server is located. Any String None - must be present Startup
database.location The directory DConE will use for persistence. Any existing path None - must be present Startup
executor.threads The number of threads executing agreements in parallel. 1-Integer.MAX_VALUE 20 Startup
fusion.decoupler The decoupler the Fusion server will use. dcone, disruptor, simple dcone Startup
disruptor.wait.strategy The wait strategy to use when the disruptor is selected for fusion.decoupler. blocking, busy.spin, lite.blocking, sleeping, yielding yielding Startup
jetty.http.port The port the Fusion HTTP server will use. 1-65535 8082 Startup
request.port The port Fusion clients will use. 1-65535 None - must be present Startup
transport The transport the Fusion server should use. OIO, NIO, EPOLL NIO Startup
transfer.chunk.size The size of the "chunks" used in a file transfer. Used as input to Netty's ChunkedStream. 1 - Integer.MAX_VALUE 4096kb When each pull is initiated
/opt/fusion-server/core-site.xml

To be confirmed

IHC Server

<configuration>
    <property>
      <name>fs.defaultFS</name>
      <value>hdfs://cert01-vm0.devnuc02.wandisco.com:8020/</value>
      <final>true</final>
    </property>
  <property>
    <name>fs.fusion.impl</name>
    <value>com.wandisco.fs.client.FusionFs</value>
  </property>
  <property>
    <name>fs.fusion.server</name>
    <value>cert01-vm1.devnuc02.wandisco.com:8023</value>
  </property>
</configuration>

WD Fusion Client

Client configuration is handled in

/etc/hadoop/conf/core-site.xml
Property Description Permitted Values Default Checked at...
fs.fusion.client.retry.max.attempts Max number of times to attempt connect to a Fusion server before failing over (in the case of multiple Fusion servers). ANy integer 3 Startup
fs.fusion.impl The FileSystem implementation to be used. com.wandisco.fs.client.FusionFs None - must be present Startup
fs.AbstractFileSystem.fusion.impl The Abstract FileSystem implementation to be used. com.wandisco.fs.client.FusionAbstractFs None - must be present Startup
fs.fusion.server The hostname and request port of the Fusion server. Comma-separated list of hostname:port for multiple Fusion servers. String:[1 - 65535]
(Comma-separated list of Fusion servers)		 None - must be present Startup
fs.fusion.transport The transport the FsClient should use. OIO, NIO, EPOLL NIO Startup
fs.fusion.push.threshold The number of bytes the client will write before sending a push request to the Fusion server indicating bytes are available for transfer. Block size of underlying filesystem - Long.MAX_VALUE. (If the threshold is set to a figure less than the block size, the block size will be used. If the threshold is 0, pushes are disabled.) The block size of the underlying filesystem Startup
fs.fusion.ssl.enabled If Client-WD Fusion server communications use SSL encryption. true, false false Startup
fusion.underlyingFs The address of the underlying filesystem Often this is the same as the fs.defaultFS property of the underlying hadoop. However, in cases like EMRFS, the fs.defaultFS points to a local HDFS built on the instance storage which is temporary, with persistent data being stored in S3. Our customers are likely to use the S3 storage as the fusion.underlyingFs. None - must be present Startup

IHC Server

The Inter-Hadoop Communication Server is configured from a single file located at:

/etc/wandisco/ihc/{distro}.ihc.
Property Description Permitted Values Default Checked at...
ihc.server The hostname and port the IHC server will listen on. String:[1 - 65535] None - must be present Startup
ihc.transport The transport the IHC server should use. OIO, NIO, EPOLL NIO Startup
ihc.ssl.enabled Signifies that WD Fusion server - IHC communications should use SSL encryption. true, false false Startup
http.server The hostname and port the IHC HTTP server will listen on. String:[1 - 65535] None - must be present Startup

WD Fusion UI Reference Guide

Installation directories

WD Fusion Server

Default installation directory:

/opt/fusion-server

The server directory contains the following subdirectories:


-rw-r--r-- 1 hdfs hdfs   62983 Mar 30 21:09 activation-1.1.jar
-rw-r--r-- 1 hdfs hdfs   44925 Mar 30 21:09 apacheds-i18n-2.0.0-M15.jar
-rw-r--r-- 1 hdfs hdfs  691479 Mar 30 21:09 apacheds-kerberos-codec-2.0.0-M15.jar
-rw-r--r-- 1 hdfs hdfs   16560 Mar 30 21:09 api-asn1-api-1.0.0-M20.jar
-rw-r--r-- 1 hdfs hdfs   79912 Mar 30 21:09 api-util-1.0.0-M20.jar
-rw-r--r-- 1 hdfs hdfs     314 Apr  1 17:21 application.properties
-rw-r--r-- 1 hdfs hdfs   43033 Mar 30 21:09 asm-3.1.jar
-rw-r--r-- 1 hdfs hdfs  436561 Mar 30 21:09 avro-1.7.6-cdh5.3.0.jar
-rw-r--r-- 1 hdfs hdfs   94463 Mar 30 21:09 bcmail-jdk14-1.48.jar
-rw-r--r-- 1 hdfs hdfs  590499 Mar 30 21:09 bcpkix-jdk14-1.48.jar
-rw-r--r-- 1 hdfs hdfs 2319441 Mar 30 21:09 bcprov-jdk14-1.48.jar
-rw-r--r-- 1 hdfs hdfs  188671 Mar 30 21:09 commons-beanutils-1.7.0.jar
-rw-r--r-- 1 hdfs hdfs  206035 Mar 30 21:09 commons-beanutils-core-1.8.0.jar
-rw-r--r-- 1 hdfs hdfs   41123 Mar 30 21:09 commons-cli-1.2.jar
-rw-r--r-- 1 hdfs hdfs   58160 Mar 30 21:09 commons-codec-1.4.jar
-rw-r--r-- 1 hdfs hdfs  575389 Mar 30 21:09 commons-collections-3.2.1.jar
-rw-r--r-- 1 hdfs hdfs  241367 Mar 30 21:09 commons-compress-1.4.1.jar
-rw-r--r-- 1 hdfs hdfs  298829 Mar 30 21:09 commons-configuration-1.6.jar
-rw-r--r-- 1 hdfs hdfs   24239 Mar 30 21:09 commons-daemon-1.0.13.jar
-rw-r--r-- 1 hdfs hdfs  143602 Mar 30 21:09 commons-digester-1.8.jar
-rw-r--r-- 1 hdfs hdfs  112341 Mar 30 21:09 commons-el-1.0.jar
-rw-r--r-- 1 hdfs hdfs  305001 Mar 30 21:09 commons-httpclient-3.1.jar
-rw-r--r-- 1 hdfs hdfs  185140 Mar 30 21:09 commons-io-2.4.jar
-rw-r--r-- 1 hdfs hdfs  284220 Mar 30 21:09 commons-lang-2.6.jar
-rw-r--r-- 1 hdfs hdfs   62050 Mar 30 21:09 commons-logging-1.1.3.jar
-rw-r--r-- 1 hdfs hdfs 1599627 Mar 30 21:09 commons-math3-3.1.1.jar
-rw-r--r-- 1 hdfs hdfs  273370 Mar 30 21:09 commons-net-3.1.jar
-rw-r--r-- 1 hdfs hdfs     417 Apr  1 17:21 core-site.xml
-rw-r--r-- 1 hdfs hdfs   68866 Mar 30 21:09 curator-client-2.6.0.jar
-rw-r--r-- 1 hdfs hdfs  185245 Mar 30 21:09 curator-framework-2.6.0.jar
-rw-r--r-- 1 hdfs hdfs  248171 Mar 30 21:09 curator-recipes-2.6.0.jar
drwxr-xr-x 1 hdfs hdfs       4 Apr  1 17:21 dcone
-rw-r--r-- 1 hdfs hdfs  504946 Mar 30 21:09 DConE-1.3.0-rc6.jar
-rw-r--r-- 1 hdfs hdfs  897053 Mar 30 21:09 DConE_Platform-1.3.0-rc5.jar
-rw-r--r-- 1 hdfs hdfs   79474 Mar 30 21:09 disruptor-3.3.2.jar
-rw-r--r-- 1 hdfs hdfs   19167 Mar 30 21:09 enunciate-core-annotations-1.29.jar
-rw-r--r-- 1 hdfs hdfs   22659 Mar 30 21:09 enunciate-core-rt-1.29.jar
-rw-r--r-- 1 hdfs hdfs   25653 Mar 30 21:09 enunciate-jersey-rt-1.29.jar
-rw-r--r-- 1 hdfs hdfs   48238 Mar 30 21:09 fusion-common-2.0.2-SNAPSHOT-cdh-5.3.0.jar
-rw-r--r-- 1 hdfs hdfs    7129 Mar 30 21:09 fusion-ihc-client-2.0.2-SNAPSHOT-cdh-5.3.0.jar
-rw-r--r-- 1 hdfs hdfs   11573 Mar 30 21:09 fusion-ihc-common-2.0.2-SNAPSHOT-cdh-5.3.0.jar
-rw-r--r-- 1 hdfs hdfs   12486 Mar 30 21:09 fusion-netty-2.0.2-SNAPSHOT.jar
-rw-r--r-- 1 hdfs hdfs  239075 Mar 30 21:09 fusion-server-2.0.2-SNAPSHOT.jar
-rw-r--r-- 1 hdfs hdfs  190432 Mar 30 21:09 gson-2.2.4.jar
-rw-r--r-- 1 hdfs hdfs 1648200 Mar 30 21:09 guava-11.0.2.jar
-rw-r--r-- 1 hdfs hdfs   21575 Mar 30 21:09 hadoop-annotations-2.5.0-cdh5.3.0.jar
-rw-r--r-- 1 hdfs hdfs   73096 Mar 30 21:09 hadoop-auth-2.5.0-cdh5.3.0.jar
-rw-r--r-- 1 hdfs hdfs 3151457 Mar 30 21:09 hadoop-common-2.5.0-cdh5.3.0.jar
-rw-r--r-- 1 hdfs hdfs 7689502 Mar 30 21:09 hadoop-hdfs-2.5.0-cdh5.3.0.jar
-rw-r--r-- 1 hdfs hdfs  352254 Mar 30 21:09 httpclient-4.1.2.jar
-rw-r--r-- 1 hdfs hdfs  181200 Mar 30 21:09 httpcore-4.1.2.jar
-rw-r--r-- 1 hdfs hdfs  227517 Mar 30 21:09 jackson-core-asl-1.8.8.jar
-rw-r--r-- 1 hdfs hdfs   17883 Mar 30 21:09 jackson-jaxrs-1.8.3.jar
-rw-r--r-- 1 hdfs hdfs  669065 Mar 30 21:09 jackson-mapper-asl-1.8.8.jar
-rw-r--r-- 1 hdfs hdfs   32319 Mar 30 21:09 jackson-xc-1.8.3.jar
-rw-r--r-- 1 hdfs hdfs   38940 Mar 30 21:09 java-uuid-generator-3.1.3.jar
-rw-r--r-- 1 hdfs hdfs   18490 Mar 30 21:09 java-xmlbuilder-0.4.jar
-rw-r--r-- 1 hdfs hdfs  105134 Mar 30 21:09 jaxb-api-2.2.2.jar
-rw-r--r-- 1 hdfs hdfs  890168 Mar 30 21:09 jaxb-impl-2.2.3-1.jar
-rw-r--r-- 1 hdfs hdfs  458739 Mar 30 21:09 jersey-core-1.9.jar
-rw-r--r-- 1 hdfs hdfs  147952 Mar 30 21:09 jersey-json-1.9.jar
-rw-r--r-- 1 hdfs hdfs  713089 Mar 30 21:09 jersey-server-1.9.jar
-rw-r--r-- 1 hdfs hdfs  539735 Mar 30 21:09 jets3t-0.9.0.jar
-rw-r--r-- 1 hdfs hdfs   67758 Mar 30 21:09 jettison-1.1.jar
-rw-r--r-- 1 hdfs hdfs  516429 Mar 30 21:09 jetty-6.1.14.jar
-rw-r--r-- 1 hdfs hdfs  163121 Mar 30 21:09 jetty-util-6.1.14.jar
-rw-r--r-- 1 hdfs hdfs  185746 Mar 30 21:09 jsch-0.1.42.jar
-rw-r--r-- 1 hdfs hdfs  100636 Mar 30 21:09 jsp-api-2.1.jar
-rw-r--r-- 1 hdfs hdfs   33015 Mar 30 21:09 jsr305-1.3.9.jar
-rw-r--r-- 1 hdfs hdfs  489884 Mar 30 21:09 log4j-1.2.17.jar
-rw-r--r-- 1 hdfs hdfs     847 Mar 30 21:09 log4j.properties
-rw-r--r-- 1 hdfs hdfs    1610 Mar 30 21:09 logger.properties
-rw-r--r-- 1 hdfs hdfs 1199572 Mar 30 21:09 netty-3.6.2.Final.jar
-rw-r--r-- 1 hdfs hdfs 1887979 Mar 30 21:09 netty-all-4.0.25.Final.jar
-rw-r--r-- 1 hdfs hdfs  105291 Mar 30 21:09 prevayler-2.3WD5.jar
-rw-r--r-- 1 hdfs hdfs  533455 Mar 30 21:09 protobuf-java-2.5.0.jar
-rw-r--r-- 1 hdfs hdfs  105112 Mar 30 21:09 servlet-api-2.5.jar
-rw-r--r-- 1 hdfs hdfs   26176 Mar 30 21:09 slf4j-api-1.6.6.jar
-rw-r--r-- 1 hdfs hdfs    9711 Mar 30 21:09 slf4j-log4j12-1.6.6.jar
-rw-r--r-- 1 hdfs hdfs   23346 Mar 30 21:09 stax-api-1.0-2.jar
drwxr-xr-x 1 hdfs hdfs      12 Apr  1 17:21 webapps
-rw-r--r-- 1 hdfs hdfs   15010 Mar 30 21:09 xmlenc-0.52.jar
-rw-r--r-- 1 hdfs hdfs    7188 Mar 30 21:09 xmlpull-1.1.3.1.jar
-rw-r--r-- 1 hdfs hdfs  481770 Mar 30 21:09 xstream-1.4.3.jar
-rw-r--r-- 1 hdfs hdfs   94672 Mar 30 21:09 xz-1.0.jar
-rw-r--r-- 1 hdfs hdfs 1351733 Mar 30 21:09 zookeeper-3.4.5-cdh5.3.0.jar

WD Fusion UI

Default installation directory for WD Fusion is

/opt/wandisco/fusion-ui-server
This folder contains the following subfolders:


drwxr-xr-x 2 hdfs hdfs   4096 Mar 30 14:28 bin
drwxr-xr-x 2 hdfs hdfs   4096 Mar 30 14:28 config
drwxr-xr-x 3 hdfs hdfs   4096 Mar 30 14:28 docs
-rw-r--r-- 1 hdfs hdfs  12614 Mar 27 22:07 fusion-ui-server-delegate.jar
-rw-r--r-- 1 hdfs hdfs 499861 Mar 27 22:07 fusion-ui-server.jar
drwxr-xr-x 2 hdfs hdfs   4096 Mar 30 14:28 lib
drwxr-xr-x 2 hdfs hdfs   4096 Apr  7 10:51 logs
drwxr-xr-x 2 hdfs hdfs   4096 Mar 30 14:28 properties
drwxr-xr-x 2 hdfs hdfs   4096 Mar 30 14:28 tmp
drwxr-xr-x 8 hdfs hdfs   4096 Mar 30 14:28 ui
drwxr-xr-x 3 hdfs hdfs   4096 Mar 30 14:28 var

WD Fusion Guide

Fusion01

Dashboard

Fusion02

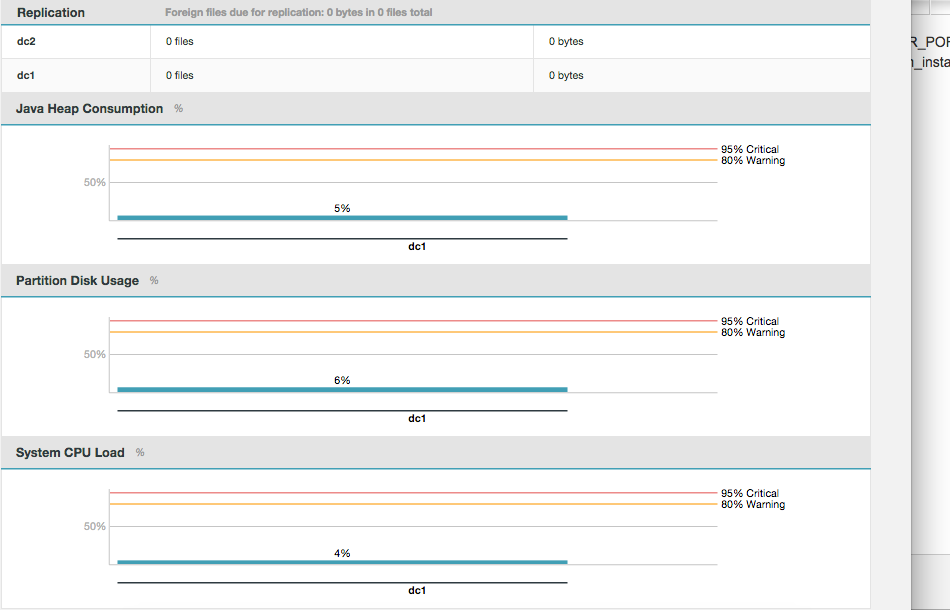

System Usage Graphs

The dashboard provides running monitors for key system resources.

Fusion03

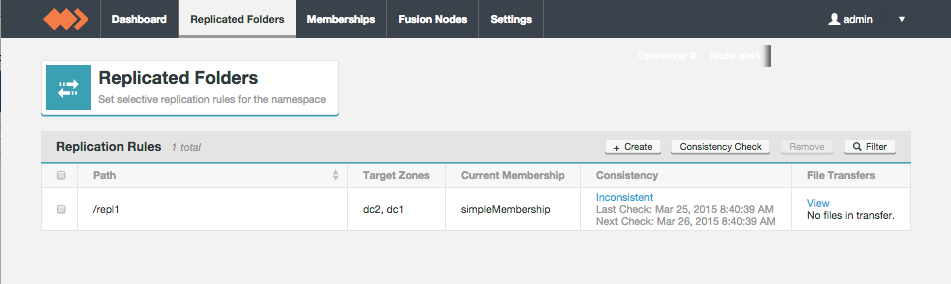

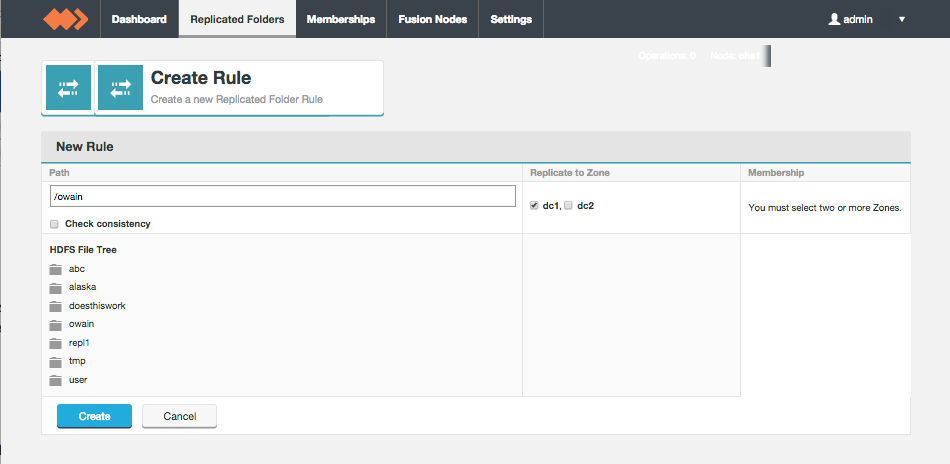

Replicated Folders

Fusion04

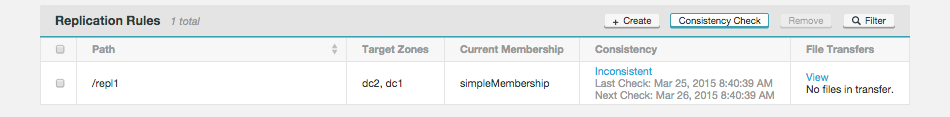

The Replicated Folders screen lists those folders in the cluster's hdfs space that are set for replication between WD Fusion nodes.

Fusion05 Fusion06

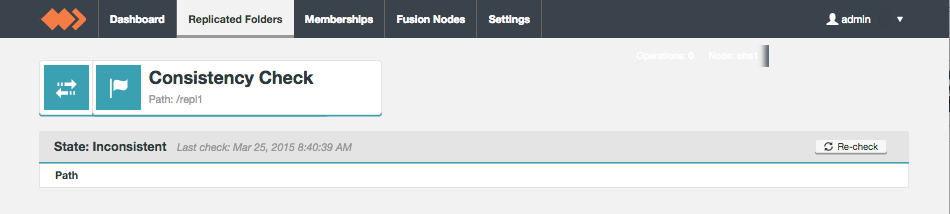

Consistency Check

Fusion07

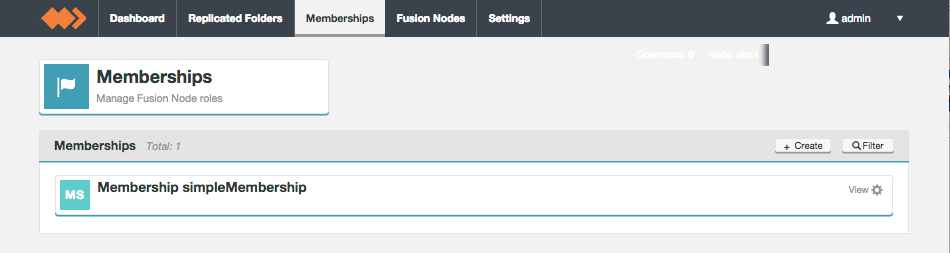

Membership

Fusion08 Fusion09 Fusion10

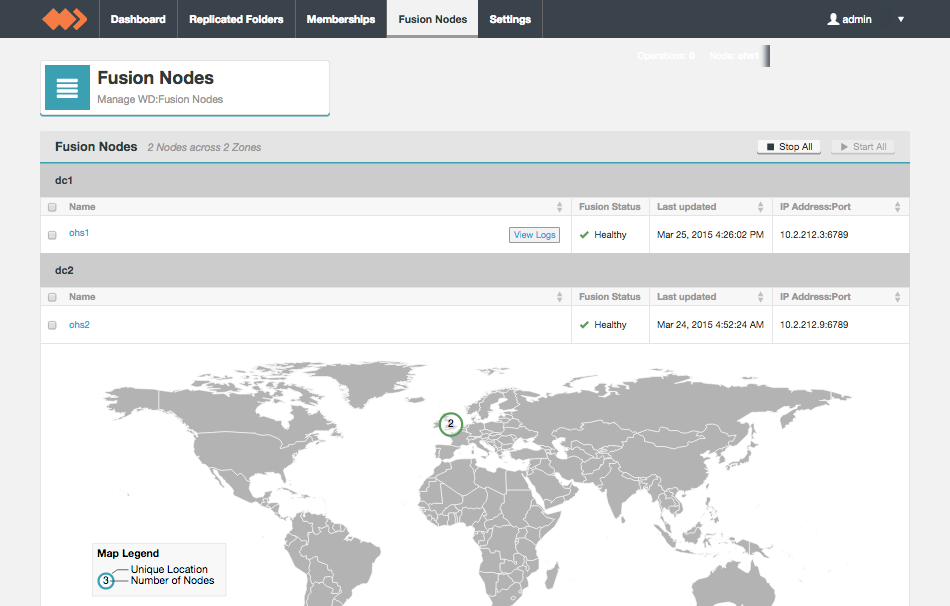

Fusion Nodes

Fusion11

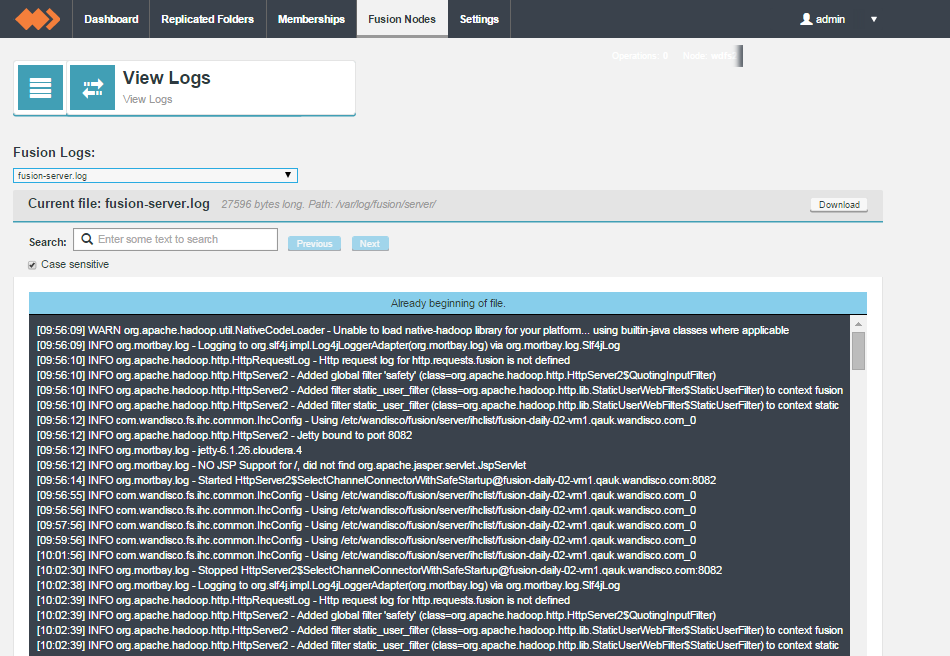

Logs

Fusion12

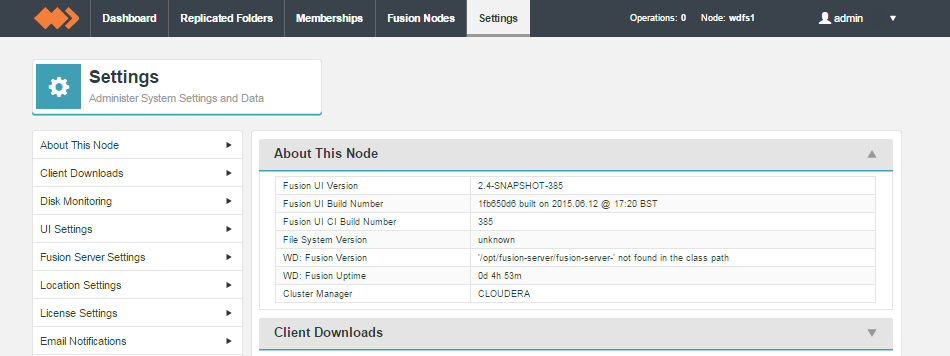

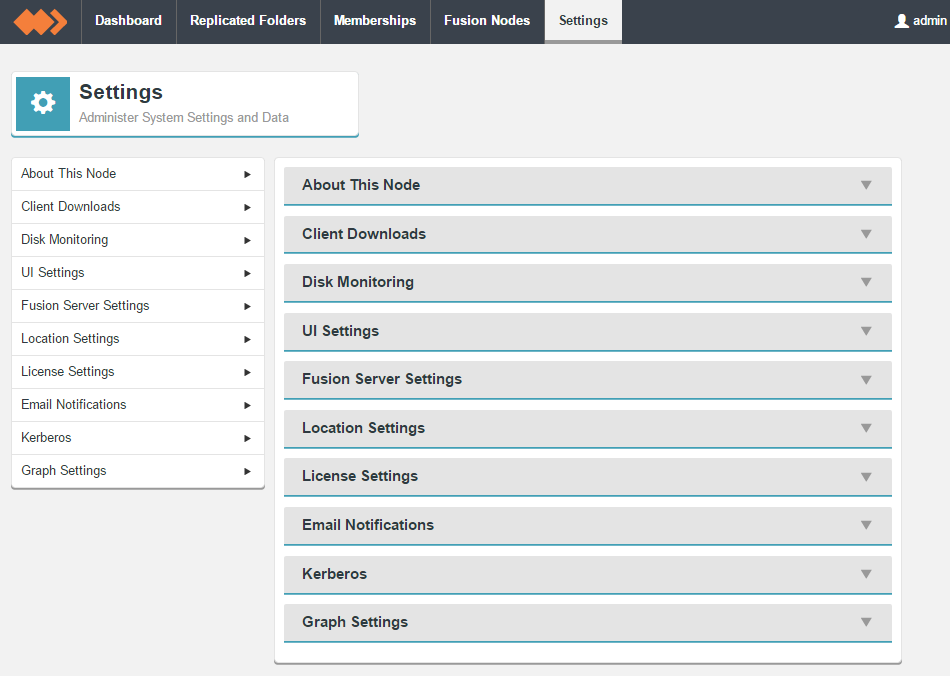

Settings

The Settings tab is home for most of WD Fusions various configuration settings. This section runs through each setting, explaing what it does.

Fusion13

About This Node

Fusion13

The About This Node panel shows the version information for the underlaying Hadoop deployment as well as the WD Fusion server and UI components:

Fusion UI Version
The current version of the WD Fusion UI.
Fusion Build Number
The specific build for this version of the WD Fusion UI.
Hadoop Version
The version of the underlying Hadoop deployment.
WD Fusion Version
The version of the WD Fusion replicator component.
WD Fusion Uptime
The time elapsed system the WD Fusion system last booted up.
Cluster Manager
The management application used with the underlying Hadoop.

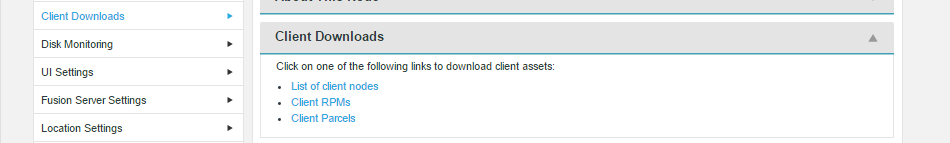

Client Downloads

Client Downloads
The client applications required to talk to WD Fusion are provided here. The client packages are provided during installation, they're listed in the Settings section in case they are required again, after installation is complete.

List of client nodes
Link to a list of nodes on the platform.
Client RPMs
Link to RPMs
Client Parcels
(available on a Cloudera platform) Link to the client in Cloudera's parcel package format.
Client Stacks
(available on a Hortonworks platform) Link to the client in Hortonworks Stack format.

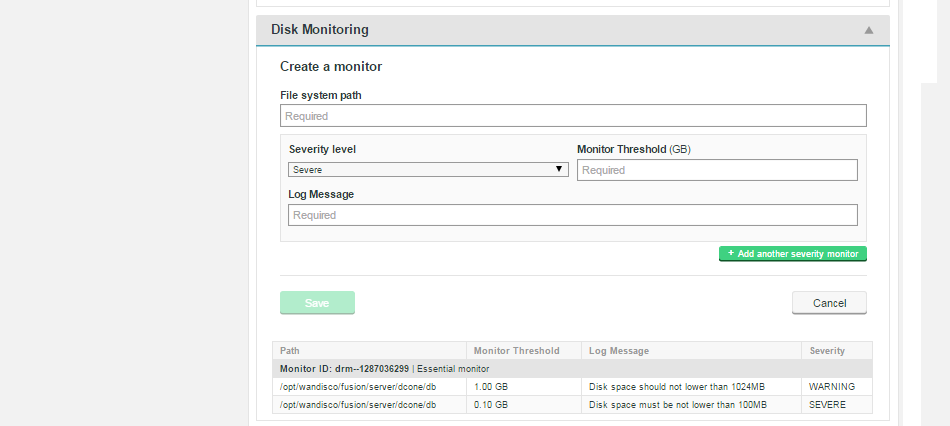

Disk Monitoring

The Disk Monitor provides a basic level of protection against potential system failure due to the exhaustion of available storage space.

Disk Monitor

File system path
Enter the full path of the system directory that will be monitored for disk usage.
Severity level
Select a system log severity level (Severe, Warning, Info or Debug) that will correspond with the Disk Capacity Threshold.

Caution Assigning a monitor with Severe level will impact operation should its trigger Disk Capacity Threshold be met. The affected WD Fusion will immediately shut down to protect its file system from corruption. Ensure that Severe level monitors are set up with a threshold that corresponds with serious risk. Set the threshold too low and you may find WD Fusion nodes are shutdown needlessly.

Disk Capcity Threshold (bytes)
The maximum amount of data that can be consumed by the selected system path before the monitor sends an alert message to the log file.
Message
A human-readible message that will be sent to the log at the point that the Disk Capacity Threshold is reached.

Create Monitor

Create Monitor

See Set up a Custom Disk Monitor in the Admin section.

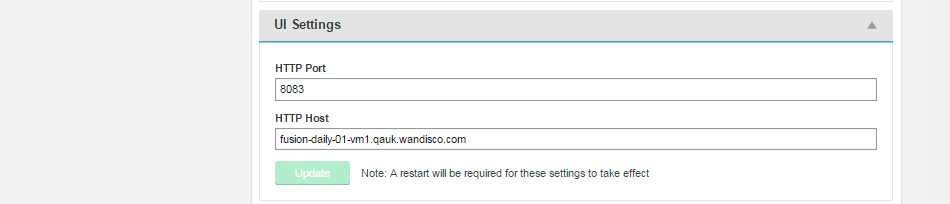

UI Settings

Settings that control the TPC Port and hostname used by the WD Fusion server.

UI Settings
HTTP Port
Port used to access WD Fusion UI.
HTTP Host
Hostname of the WD Fusion UI.

Restart required
Any change that you make will require a restart of the WD Fusion server in order for it to be applied.

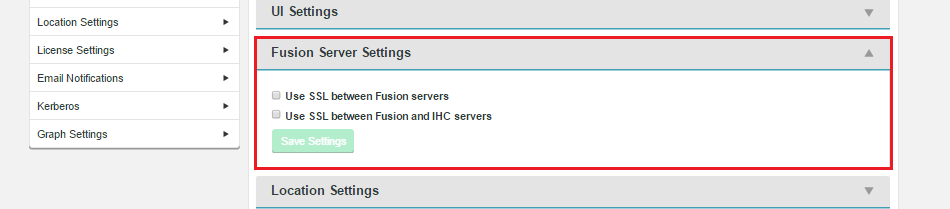

Fusion Server Settings

The server settings give you control over traffic encryption between WD Fusion and IHC servers.

Server Settings
Use SSL between Fusion servers
(Checkbox) Tick to enable SSL encryption for traffic between WD Fusion servers.
Use SSL between Fusion and IHC servers
(Checkbox) Tick to enable SSL encryption for traffic between WD Fusion servers and the IHC servers.

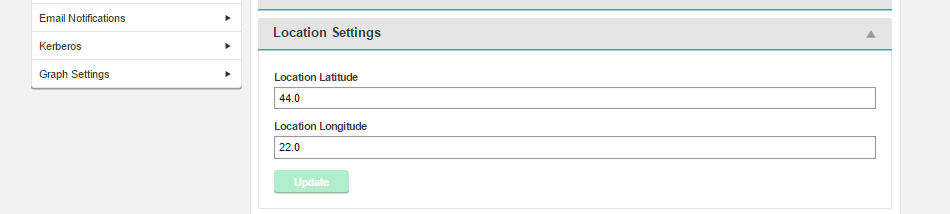

Location Settings

The Location Settings are used to pin the WD Fusion server to the map on the Fusion Nodes screen.

Server Settings
Location Latitude
Latitude coordinate for the server's location.
Location Longitude
Logitude coordinate for the server's location.

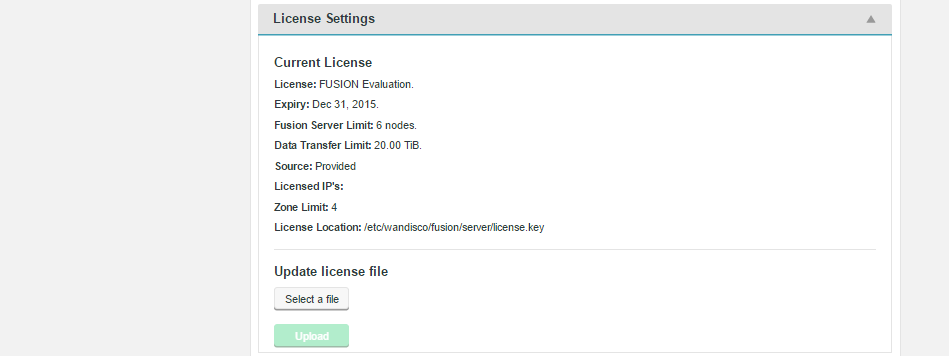

License Settings

The License Settings panel gives you a summary of the server's license status.

Server Settings
License:
Type of license employed.
Expiry:
Date on which the license will expire -- at which point a new license will be required.
Fusion Server Limit:
Maximum number of WD Fusion servers covered under the license.
Data Transfer Limit:
Source
Provided or Downloaded.
Licensed IPs:
Machine IP addresses that are covered under the license.
Zone Limit:
The maximum number of zones supported under the license.
License Location:
Location of the license key on the server's file system.

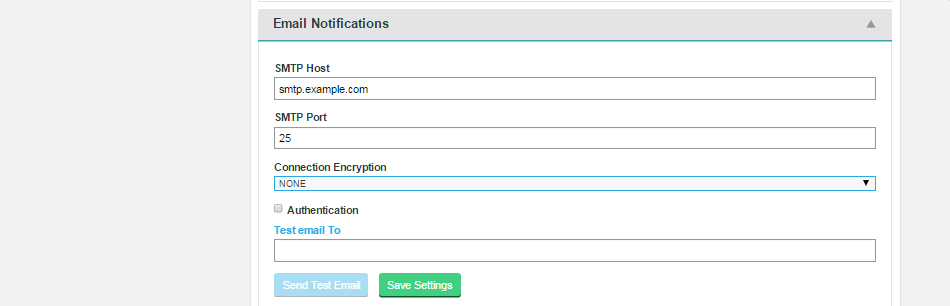

Email Notifications

The Email Notification let you set up system emails that can be triggered is a particular system event occurs.

Email Notification

Email notification lets you set up notification emails that can be sent from the WD Fusion server if there's a system event that requires administrator attention. For more information about setting up email notifications, see Set up email notifications

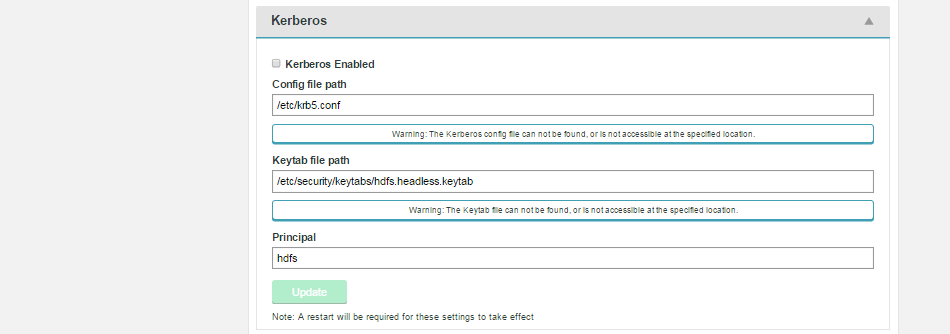

Kerberos

WD Fusion supports Kerberized environments, supporting the use of an established Kerberos Key Distribution Center (KDC) and realms.

Kerberos Settings
Config file path
Path to the Kerberos configuration file, e.g. krb5.conf.
Kaytab file path
Path to the generated keytab.
Principle
Principle for the keytab file.

See Setting up Kerberos for more information about Kerberos setup.
